Rear Heat Duct Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Turn over the floor covering. (See FLOOR COVERING REMOVAL/INSTALLATION .)
Remove the rear duct. (See REAR DUCT REMOVAL/INSTALLATION .)
Remove in the order indicated in the Fig 1 .

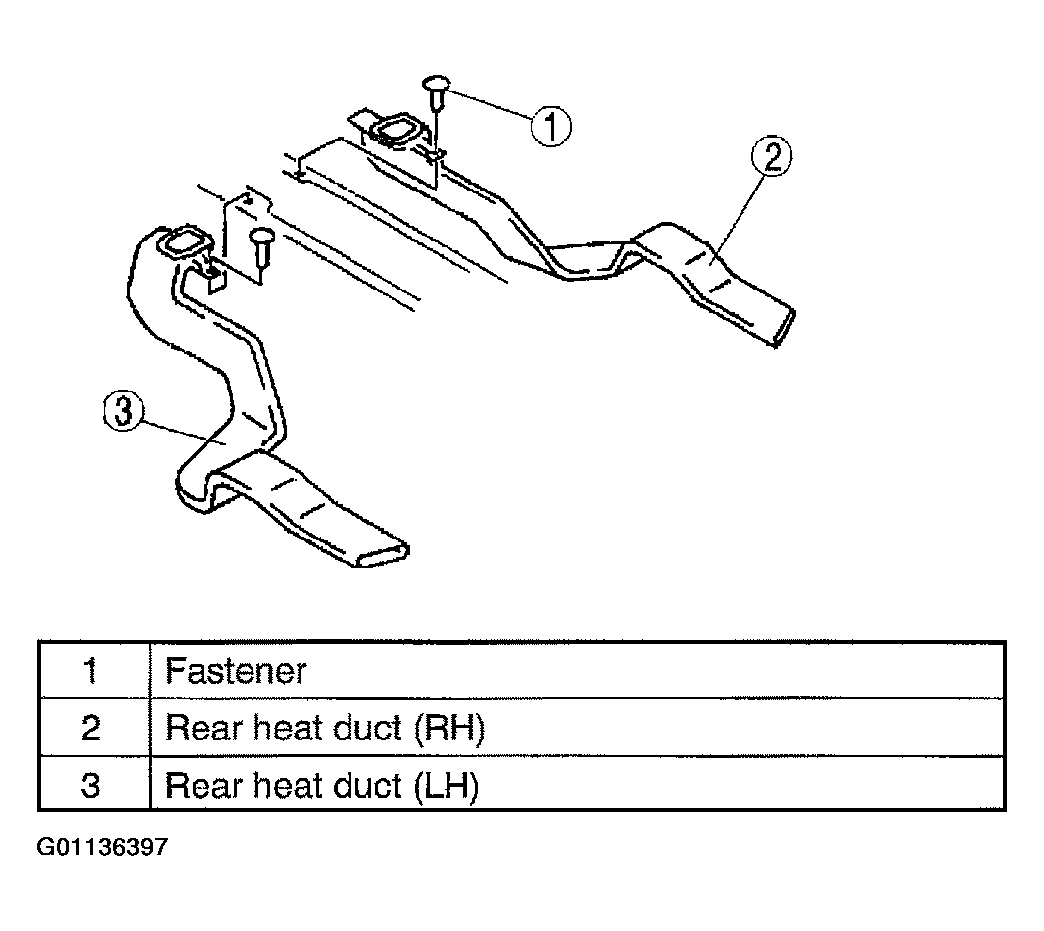

Fig 1: Removing/Installing Rear Heat Ducts
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
