Ambient Temperature Sensor Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the radiator grille. (See RADIATOR GRILLE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.

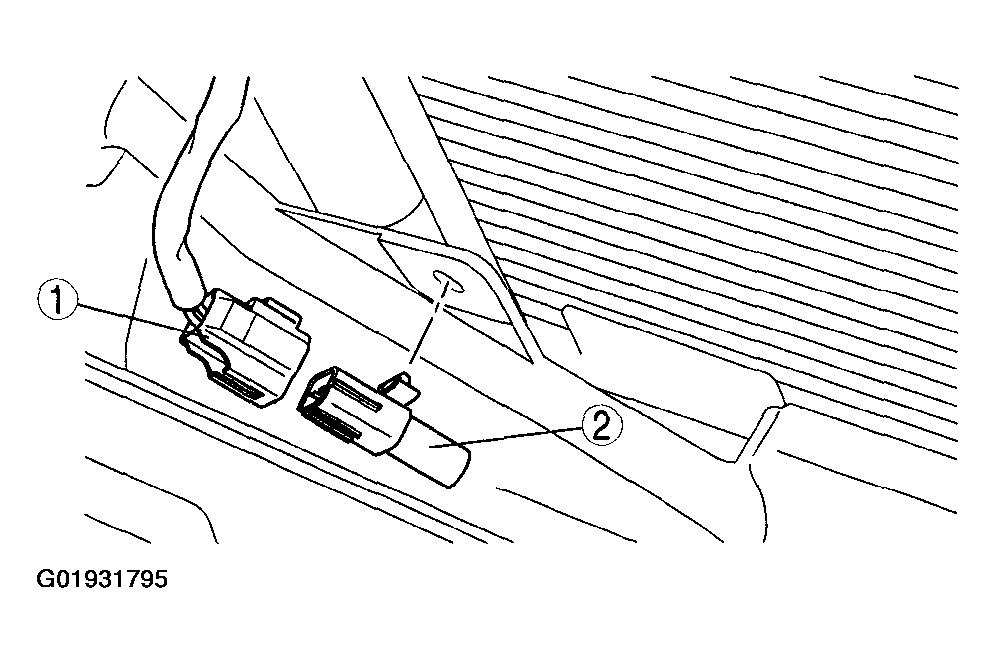

    AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION

    G01931795
    1 Ambient Temperature Sensor Connector
    2 Ambient Temperature Sensor
  4. Install in the reverse order of removal.
