Front Map Light Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the front map light terminals using an ohmmeter.
- If not as specified, replace the front map light.
Fig 1: Front Map Light Switch Position And Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.

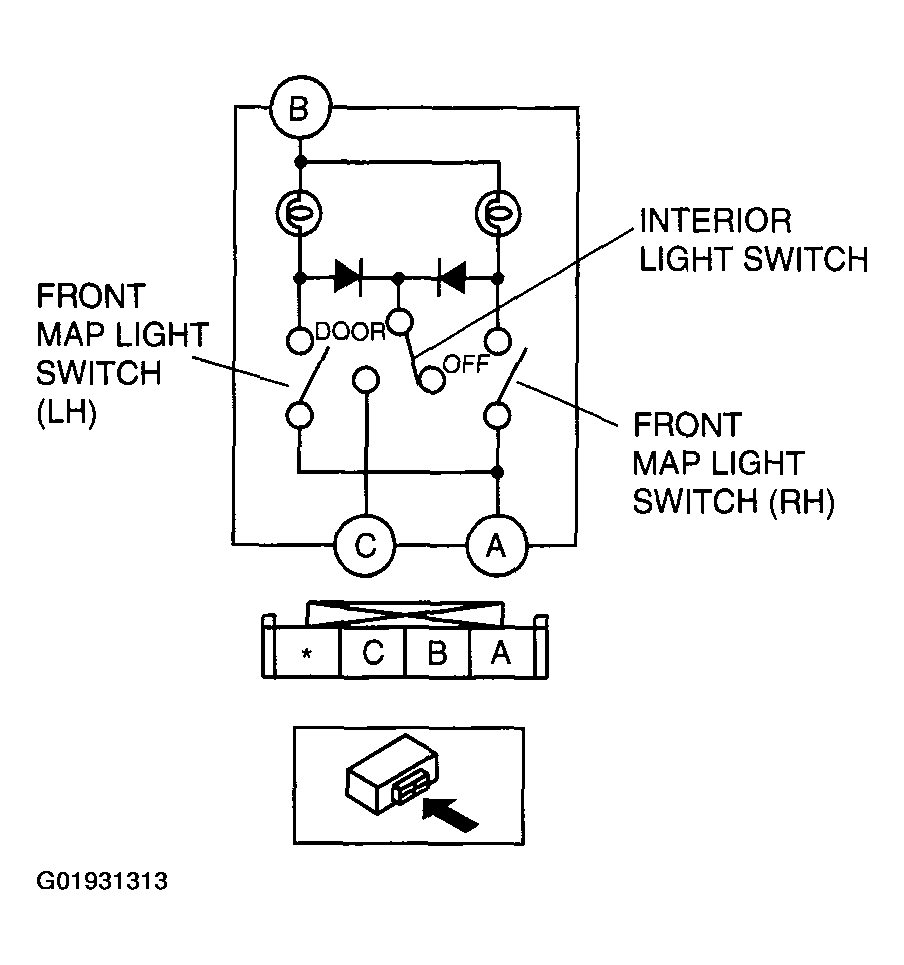

Fig 2: Inspecting Continuity Between Front Map Light Terminals
Courtesy of MAZDA MOTORS CORP.
