Washer Tank Removal/Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION .)
Remove in the order indicated in the illustration.

Fig 1: Washer Tank Removal Order Table
Courtesy of MAZDA MOTORS CORP.

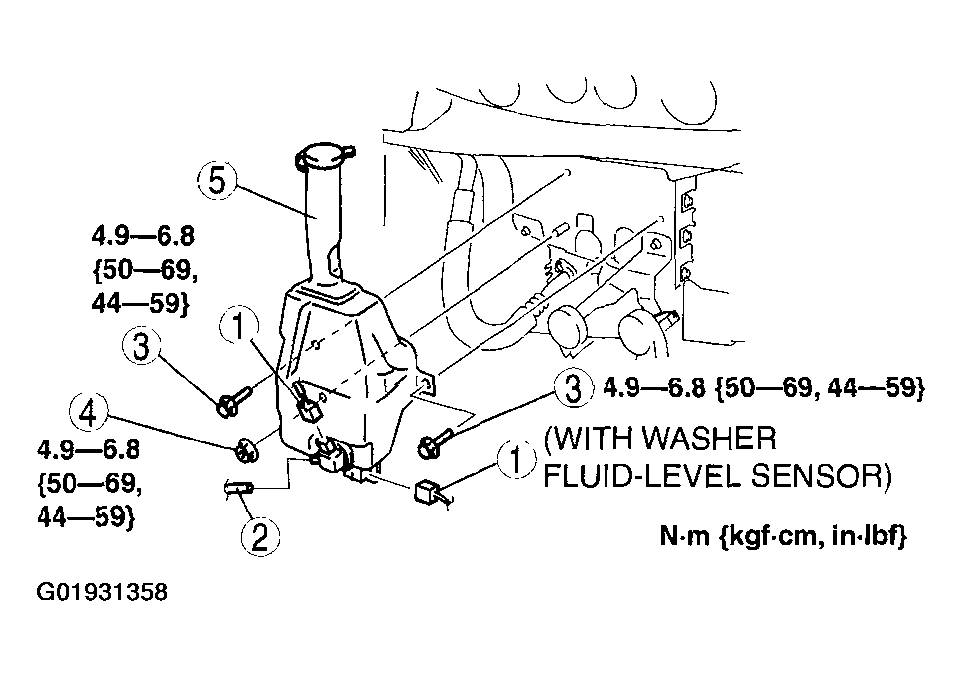

Fig 2: Removing Washer Tank
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
