Driveshaft Indexing

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

If indexing the driveshaft does not eliminate the vibration, balance the driveshaft. Refer to DRIVESHAFT RUNOUT AND BALANCE .

Raise and support the vehicle.

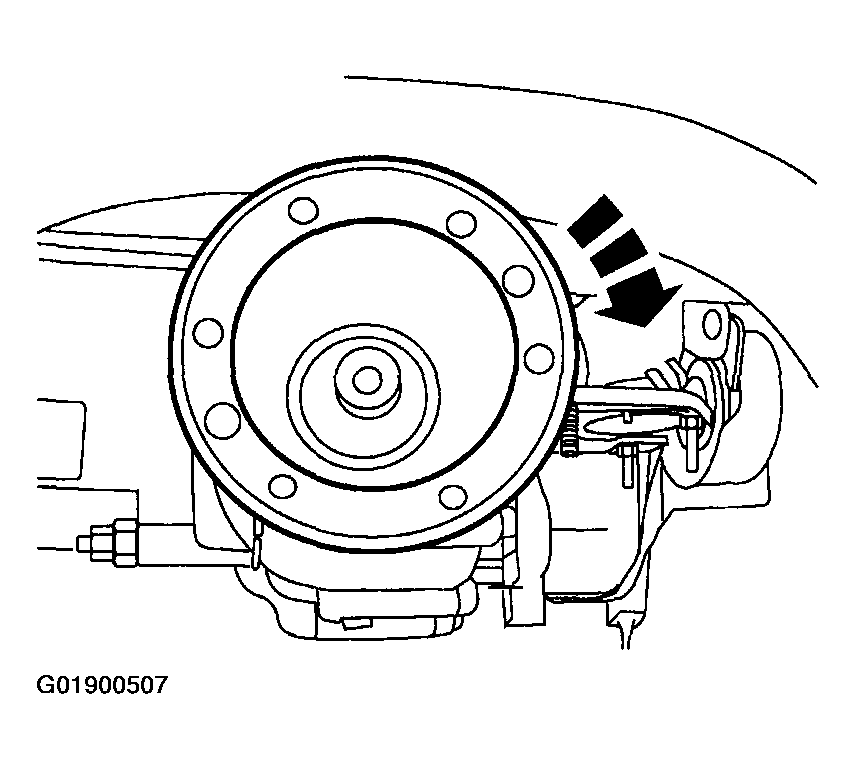

Fig 1: Rotating Drive Shaft
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not reuse the CV joint bolts and washers. Install new bolts and washers only or damage to the vehicle may occur.
Remove and discard the front driveshaft bolts and washers. Disconnect the front driveshaft.
Rotate the front flange 60 degrees.

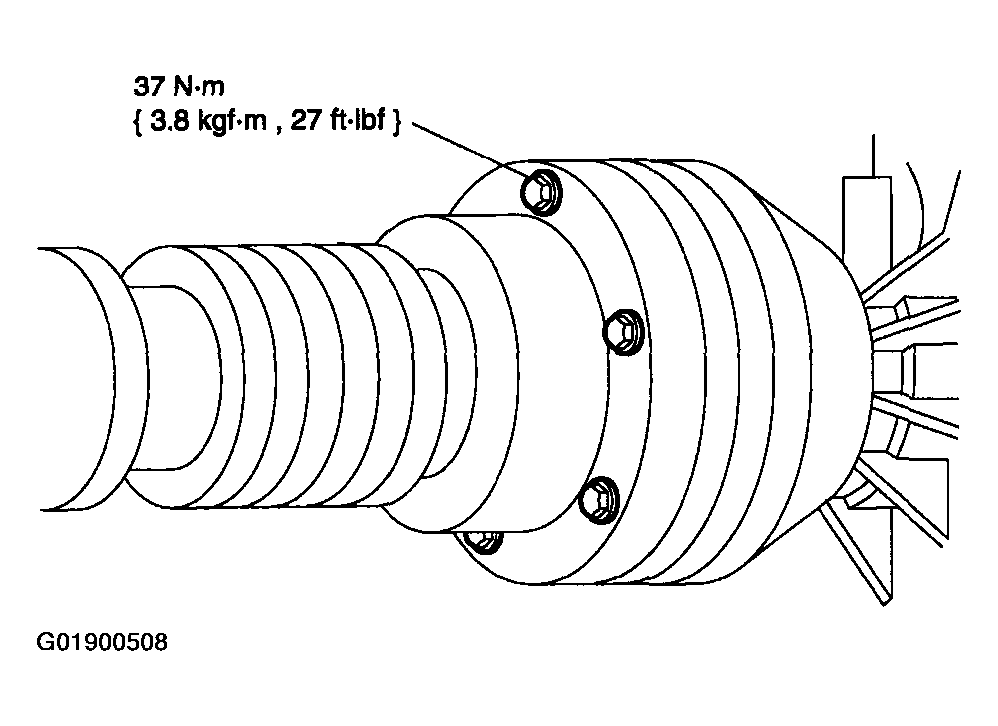

Fig 2: Connecting Front Driveshaft And Installing New Bolts And Washers
Courtesy of MAZDA MOTORS CORP.
Connect the front driveshaft and install new bolts and washers.
CAUTION:
- Do not reuse the bolts and straps for the pinion yoke. Install new bolts and straps or damage to the vehicle may occur.

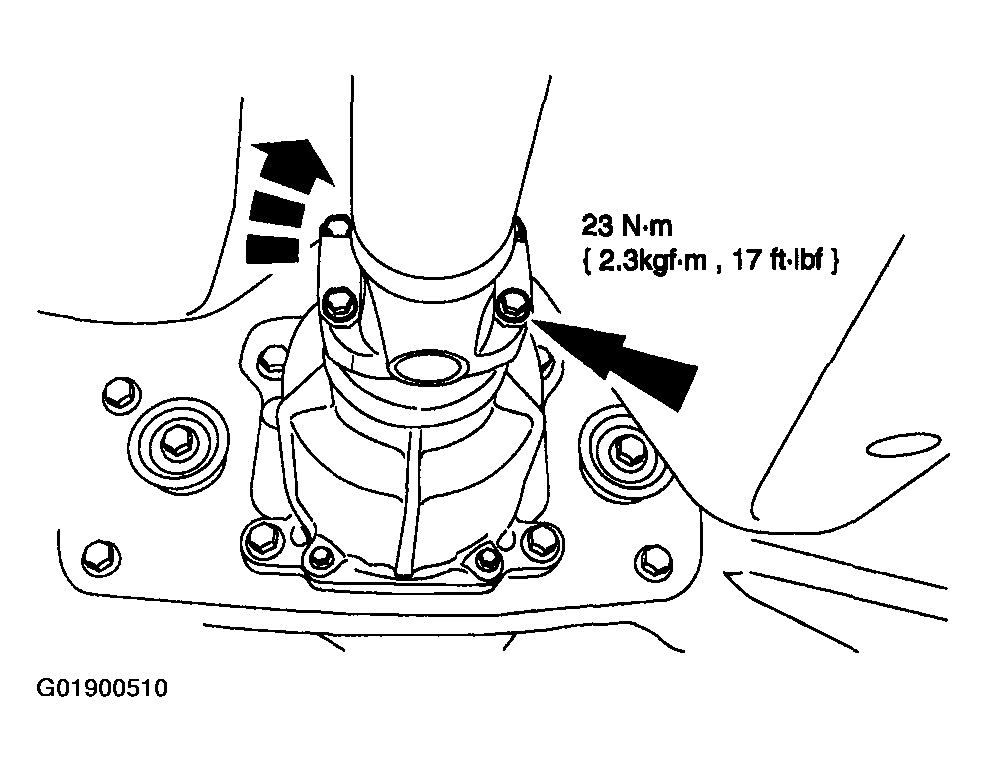

  Fig 3: Connecting Front Driveshaft And Installing Bolts And Washers
  Courtesy of MAZDA MOTORS CORP.
Disconnect the rear driveshaft universal joint.
- Discard the bolts and straps.
Rotate the rear pinion yoke 180 degrees.

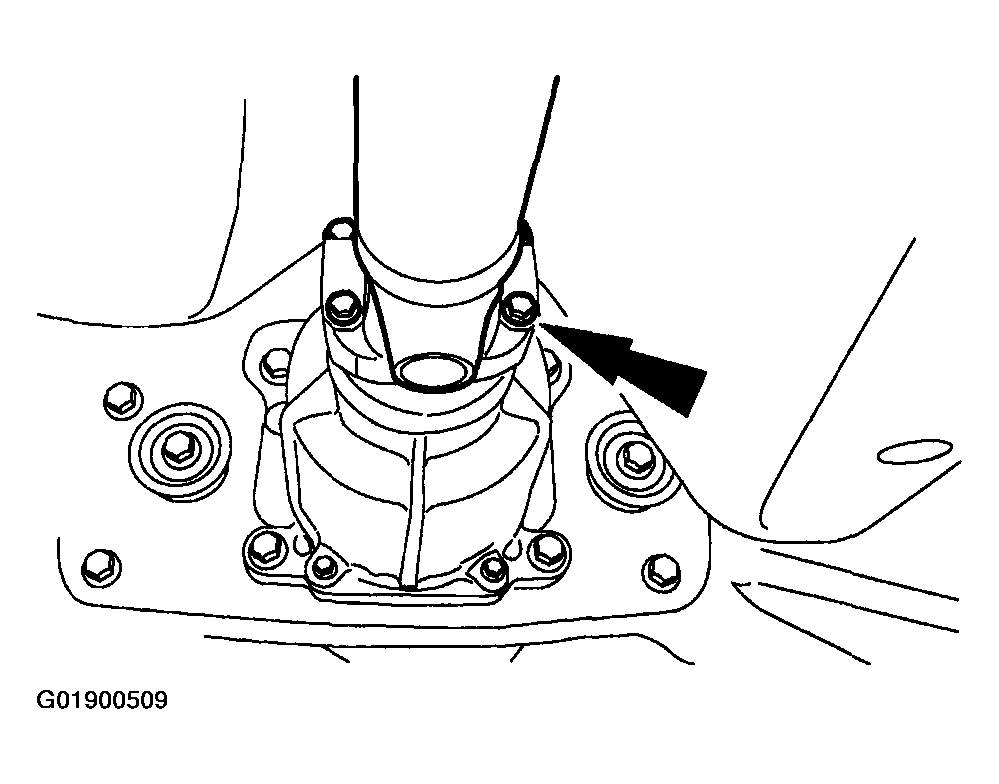

Fig 4: Disconnecting Rear Driveshaft Universal Joint
Courtesy of MAZDA MOTORS CORP.
Connect the rear driveshaft and install new bolts and straps.
Lower the vehicle and test drive.
Repeat the procedure if necessary.
