Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument panel center finish panel. For additional information, refer to INSTRUMENT CLUSTER FINISH PANEL .

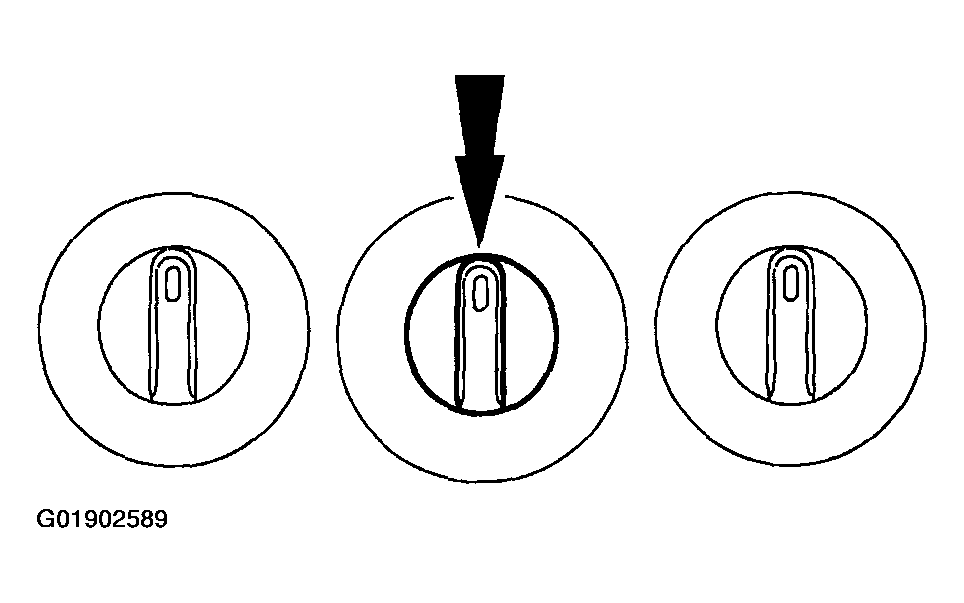

Fig 1: Removing Function Selector Switch
Courtesy of MAZDA MOTORS CORP.
Remove the function selector switch knob.

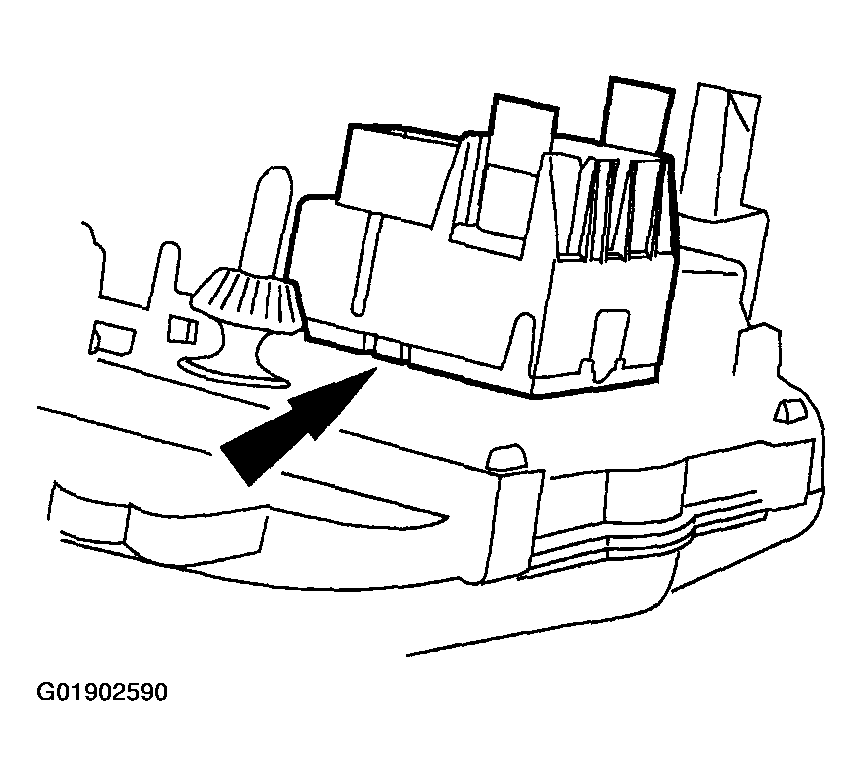

Fig 2: Removing Function Selector Switch
Courtesy of MAZDA MOTORS CORP.
Remove the function selector switch.
1. Push in the locking tab on one side of the function selector switch.
NOTE:
- Align the function selector switch locking tabs with the holes in the housing and press the function selector into the housing. Verify that both locking tabs are secured.
To install, reverse the removal procedure.
