Modular Audio - Upper Module Removal and Installation: Notes

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables. For additional information, refer to BATTERY DISCONNECT .
Remove the audio unit. For additional information, refer to AUDIO UNIT
Remove in the order indicated in the figure.

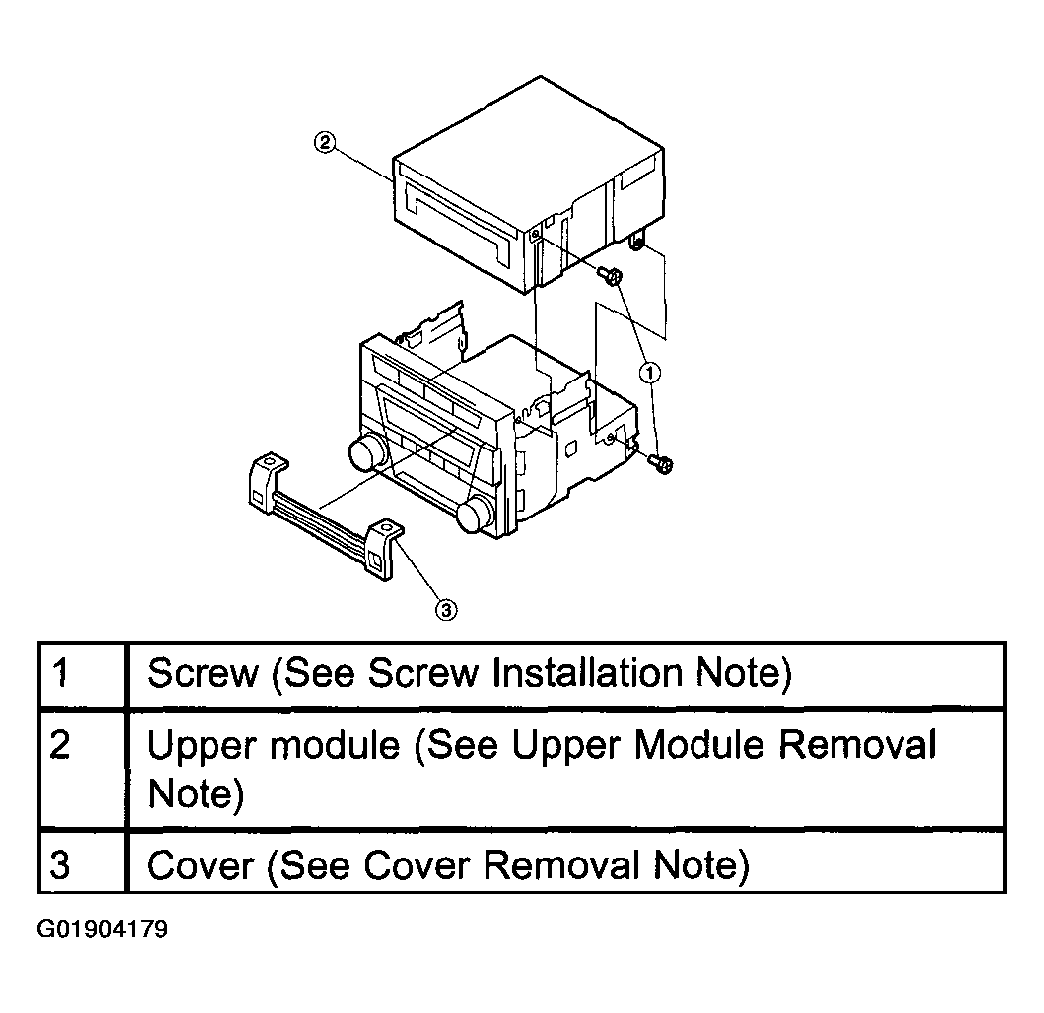

Fig 1: Modular Audio Removing Procedure And Removing Order Chart (Upper Module)
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure
