Generator Removal/Installation: AJ

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the under cover.
Remove the drive belt. (See DRIVE BELT REPLACEMENT [AJ] .)
Remove the TWC (RH) and the front pipe. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [AJ] .)
Remove in the order indicated in the table.

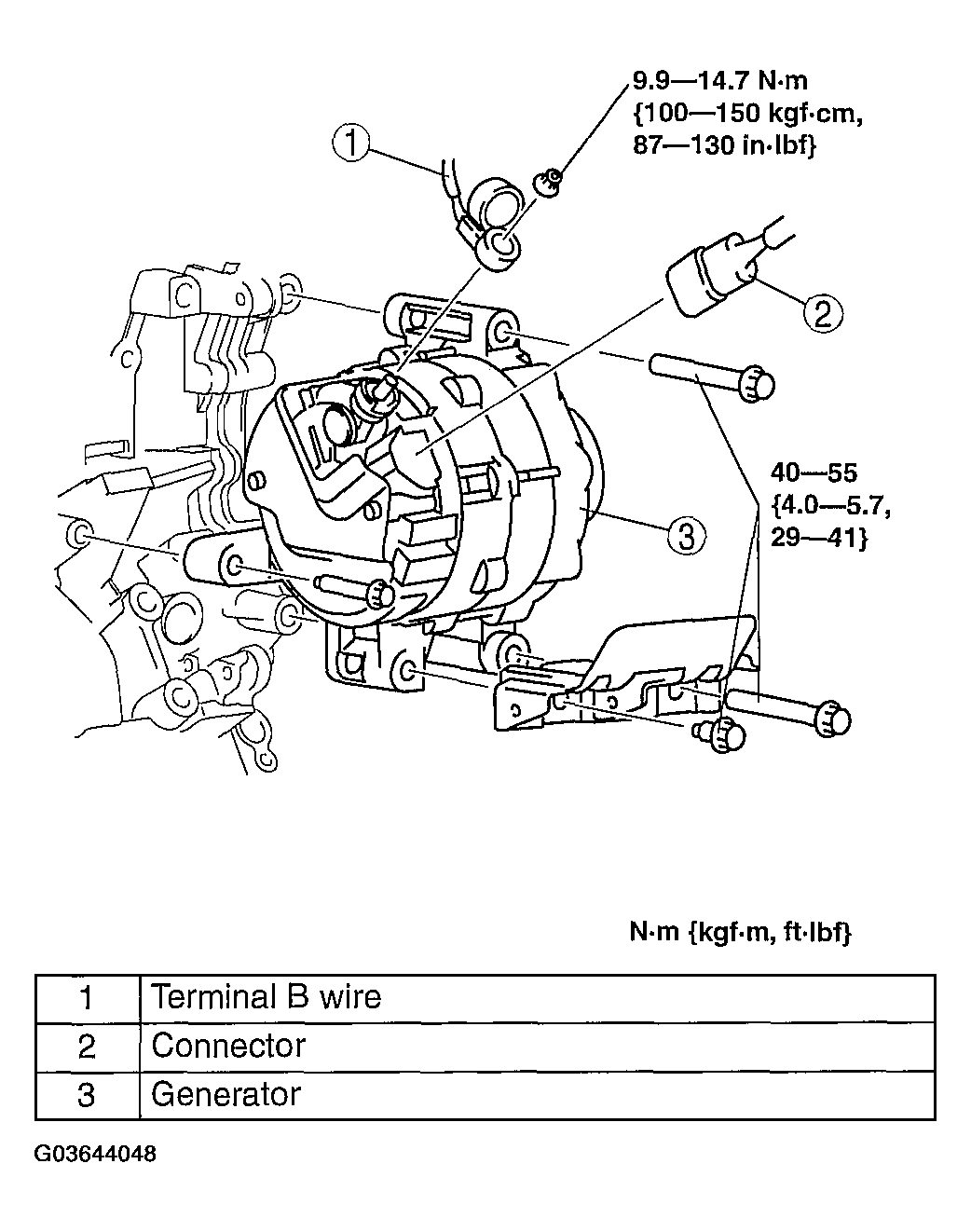

Fig 1: Generator (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
