Generator Removal/Installation: L3

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the under cover.
  3. Remove the drive belt. (See DRIVE BELT REPLACEMENT [L3] .)
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

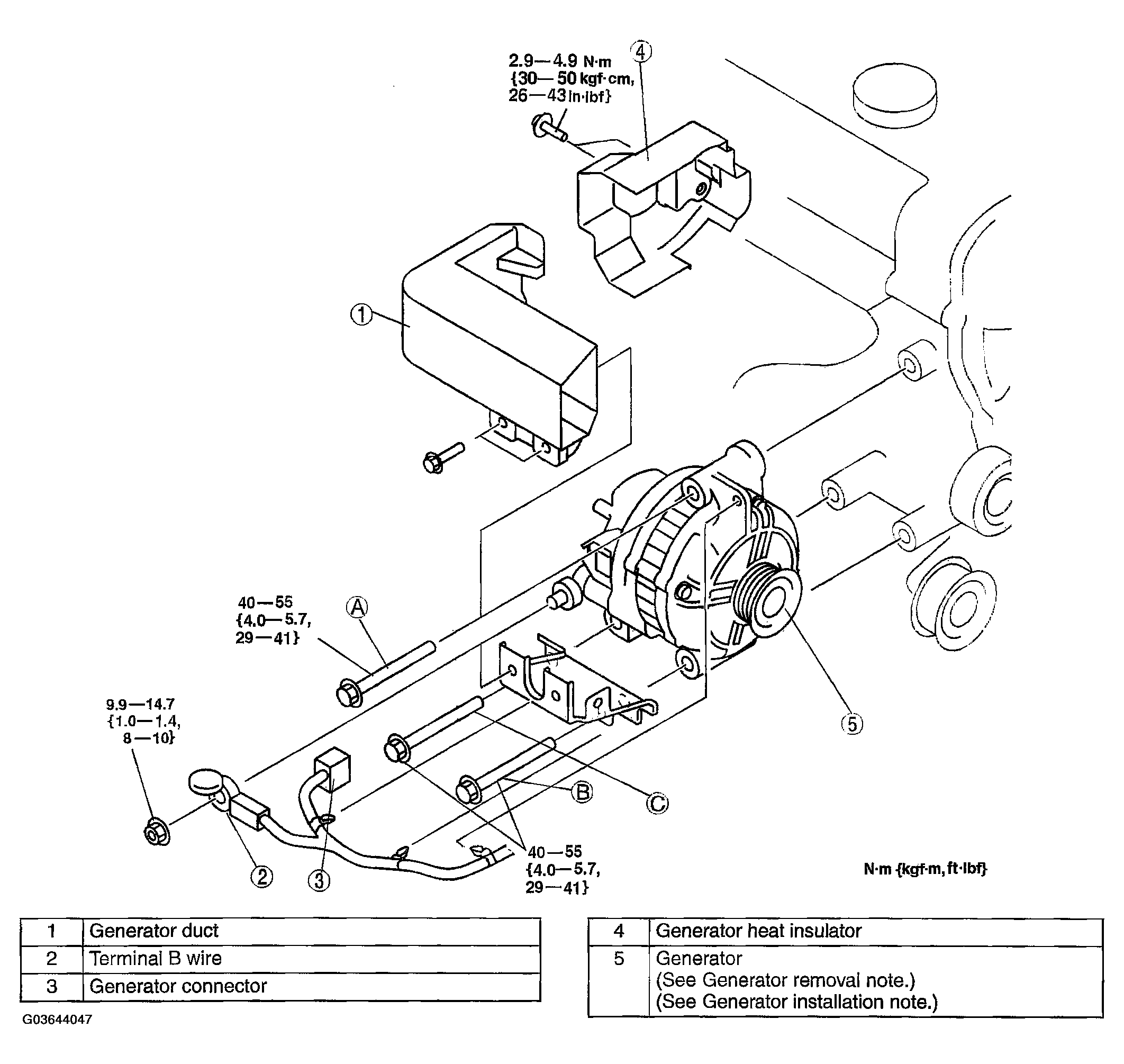

    Fig 1: Exploded View Of Generator (Torque Specs)
    G03644047Courtesy of MAZDA MOTORS CORP.
