Front Shock Absorber and Coil Spring Installation Note

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Install the stud bolts at a 27°-33° angle from where the stabilizer control link is installed (center line), towards the inner side of the vehicle.

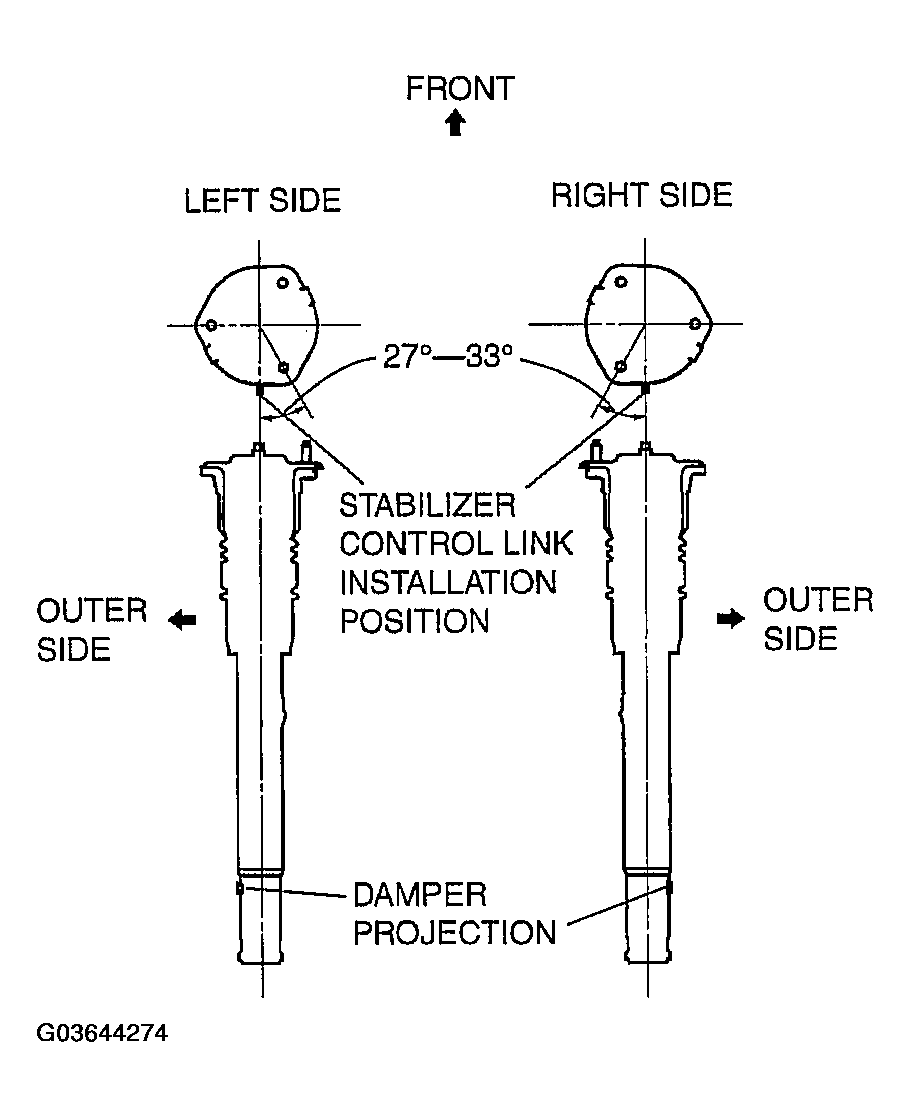

Fig 1: Installing Front Shock Absorber And Coil Spring
Courtesy of MAZDA MOTORS CORP.
