Brake switch Installation Note
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Fix the new brake switch on the brake pedal bracket or interlock cable unit by pressing down at 50 N {5.1 kgf, 11 Ibf}.

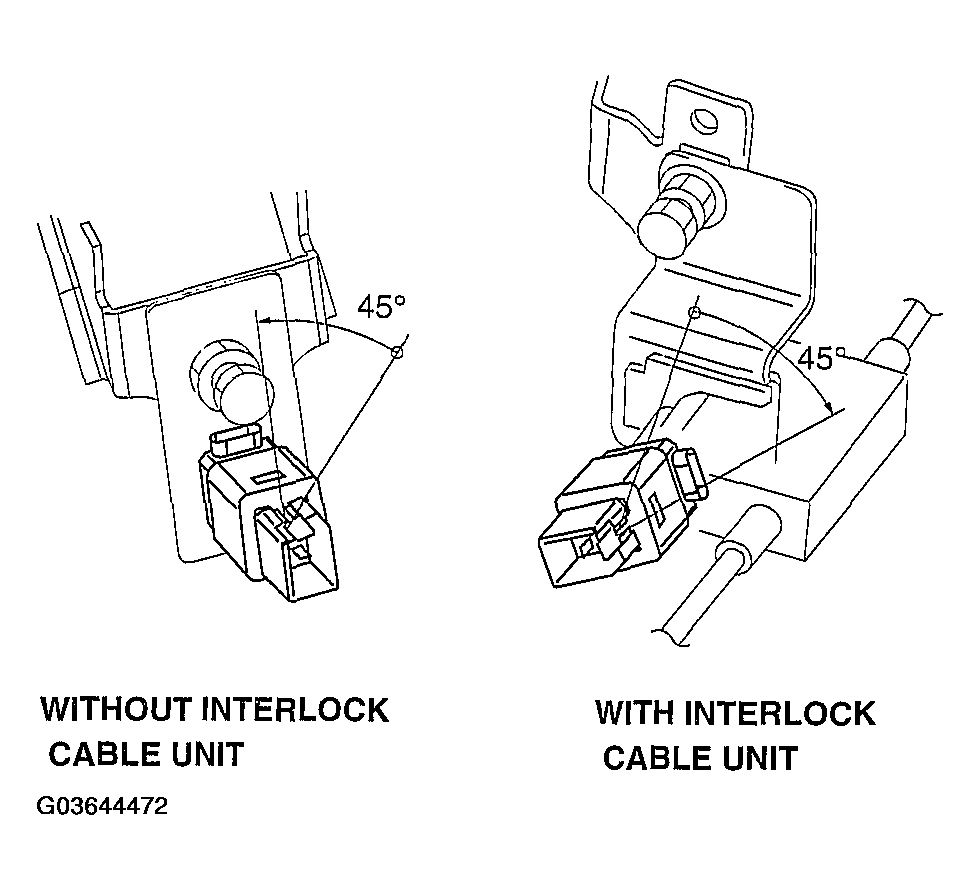

- Rotate the brake switch 45° counterclockwise (without interlock cable unit) or clockwise (with interlock cable unit).
- Verify that the brake switch is locked securely.
