Disc Pad (Front) Replacement

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

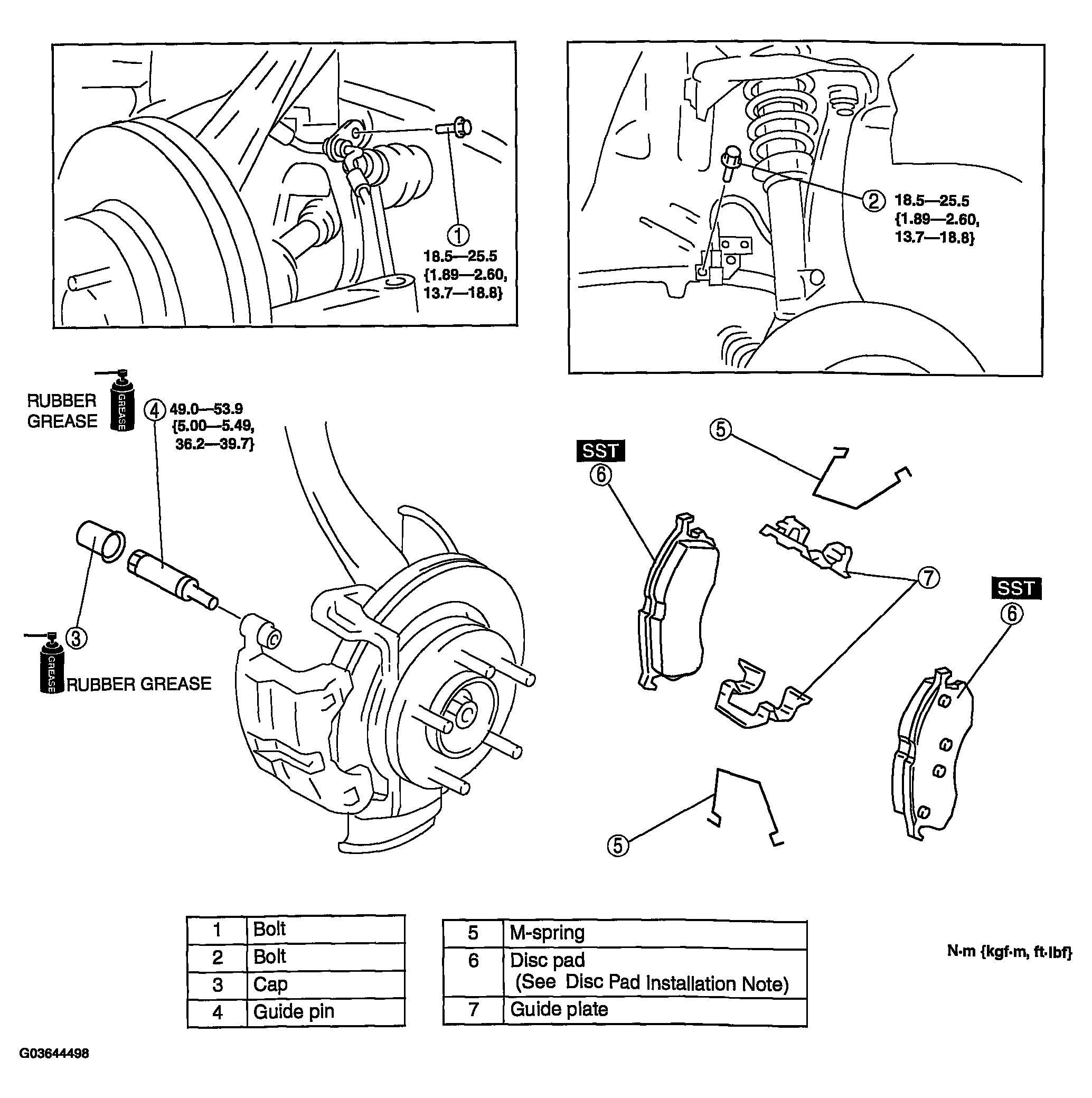

Fig 1: Removal Order Of Disc Pad (Front) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
