Power Brake Unit Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the master cylinder. (See MASTER CYLINDER REMOVAL/INSTALLATION .)
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  4. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  5. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
  6. Remove in the order indicated in the table.

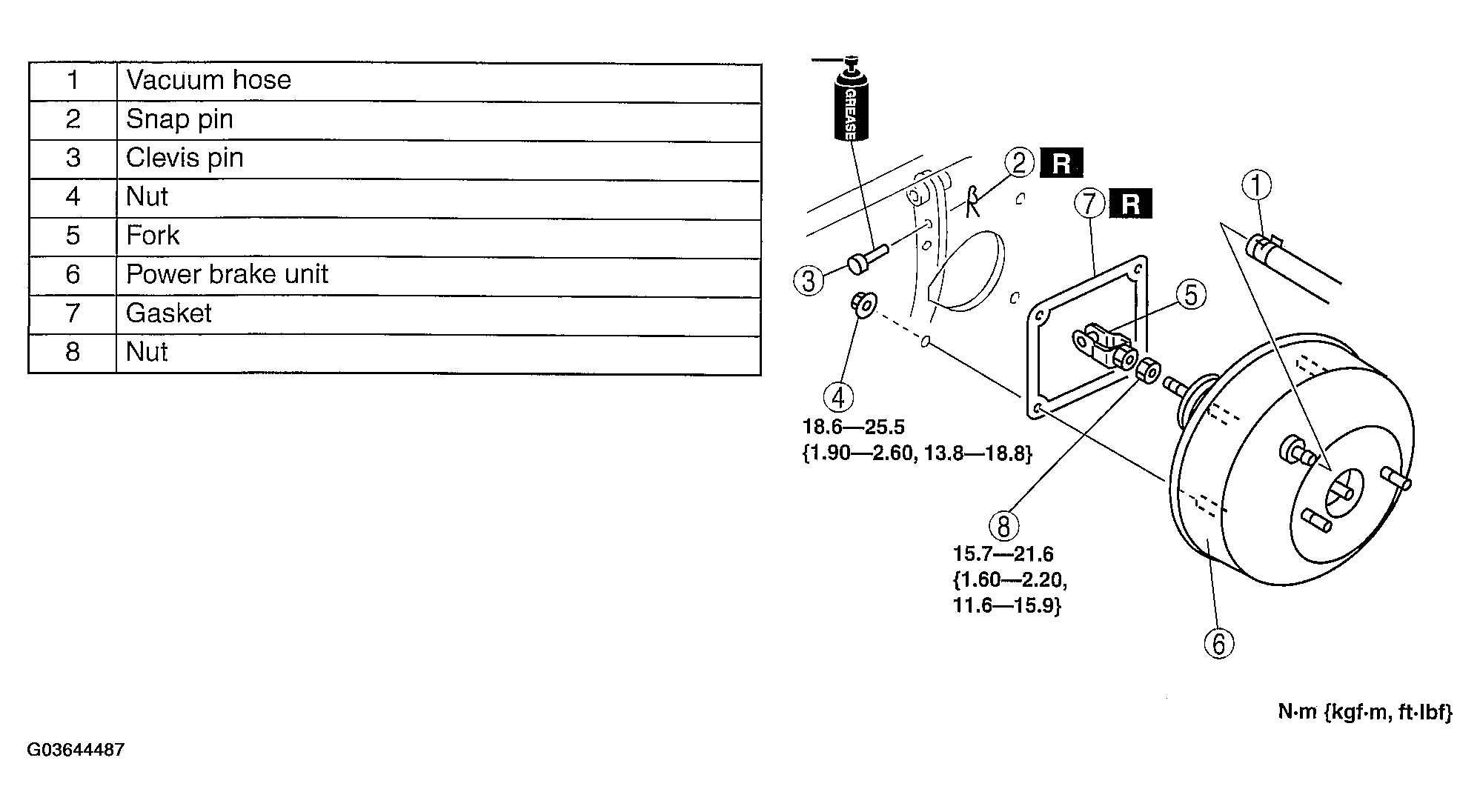

    Fig 1: Removal Order Of Power Brake Unit (Torque Specs)
    G03644487Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
