Clock Spring Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable.
- Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
- Remove the steering wheel. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
- Remove the column cover.

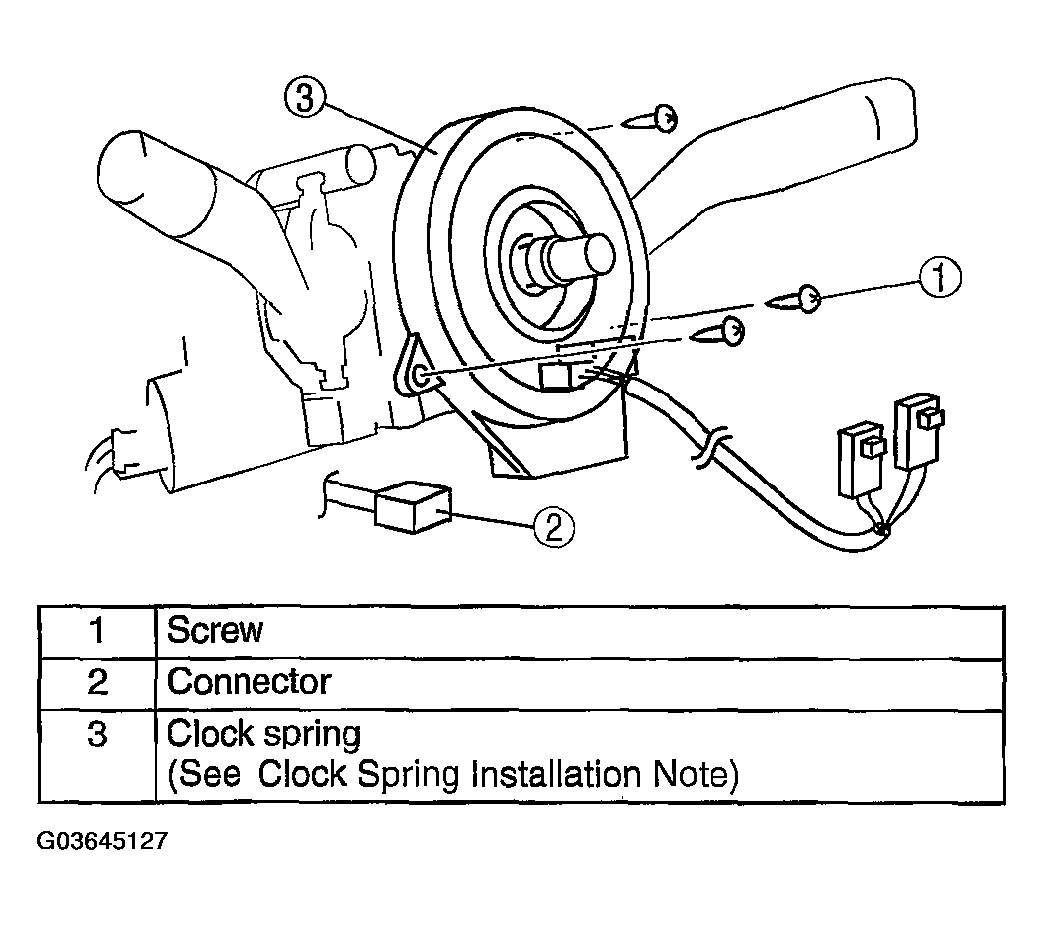

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Verify that the air bag system warning light illuminates for approximately 6 seconds
and then goes off.
- If the air bag system warning light does not operate in the manner described above, there are malfunctions in the system. Inspect the system using the on-board diagnostic.
