Seat Weight Sensor Control Module Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the WDS or equivalent. (See SEAT WEIGHT SENSOR CALIBRATION .)

Turn the ignition switch to the LOCK position.
Disconnect the negative battery cable and wait for 1 min or more .
Remove the front passenger's seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

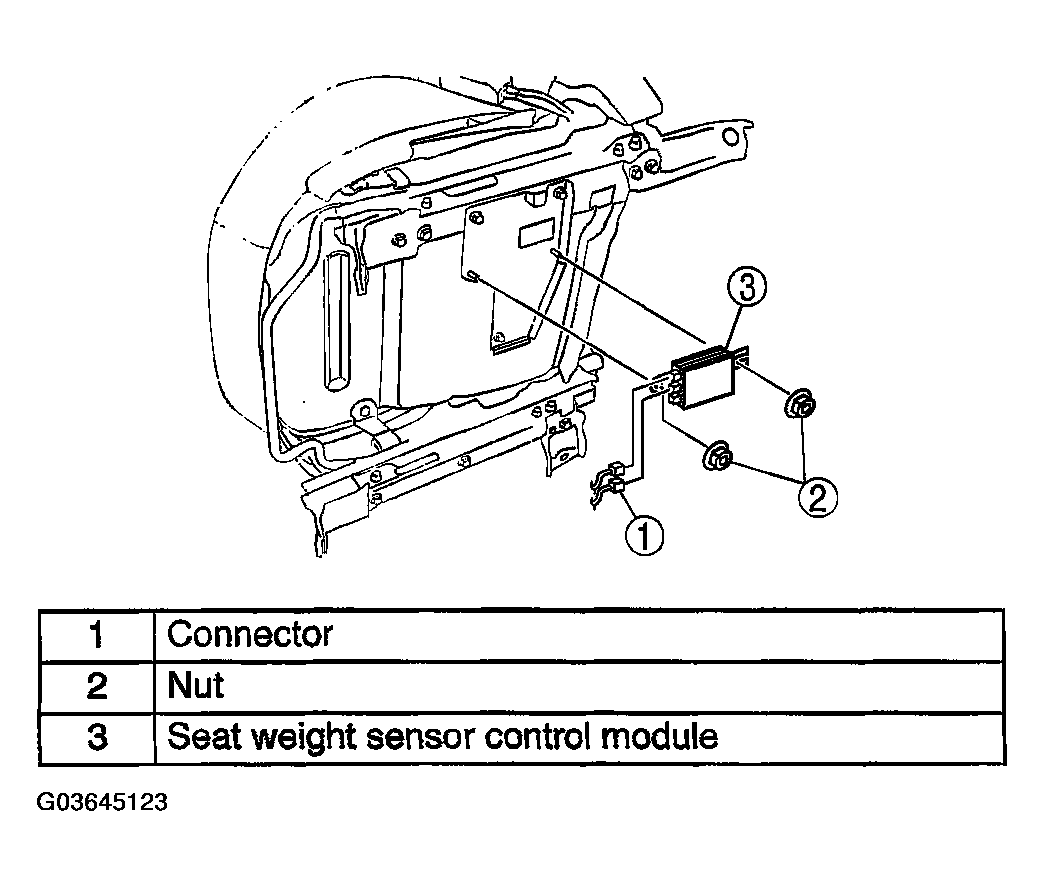

Fig 1: Seat Weight Sensor Control Module Removal Sequence
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
