Auto Light-Off Control Module Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Measure the voltage at the auto light-off control module terminals as indicated below.
Disconnect the auto light-off control module connector before inspecting for continuity at terminals 1B, 1P and 2D.
- If not as specified, inspect the parts listed under "Action."
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the auto light-off control module.

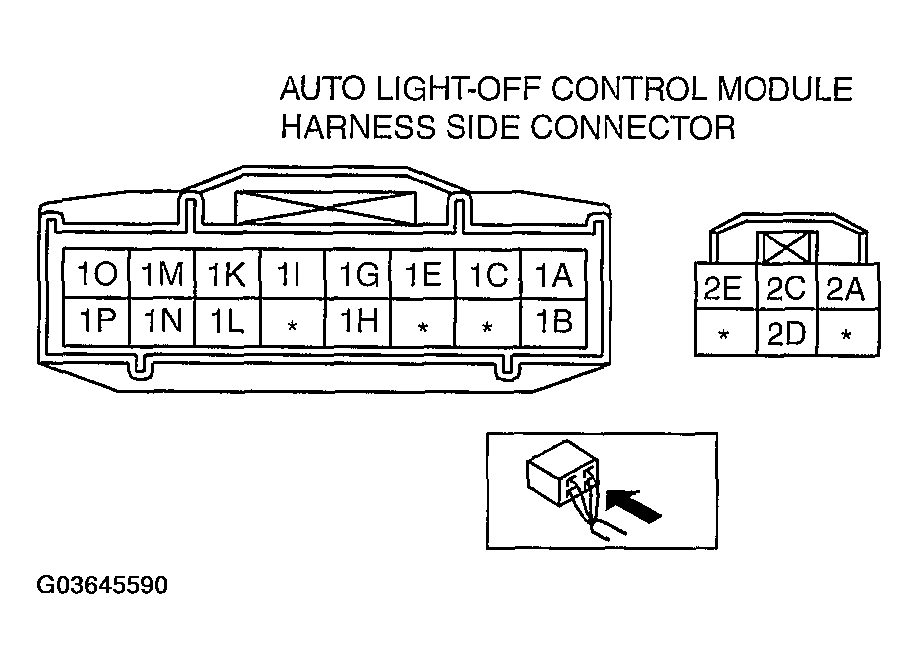

Fig 1: Auto Light-Off Control Module Connector Terminal Identification

Courtesy of MAZDA MOTORS CORP.

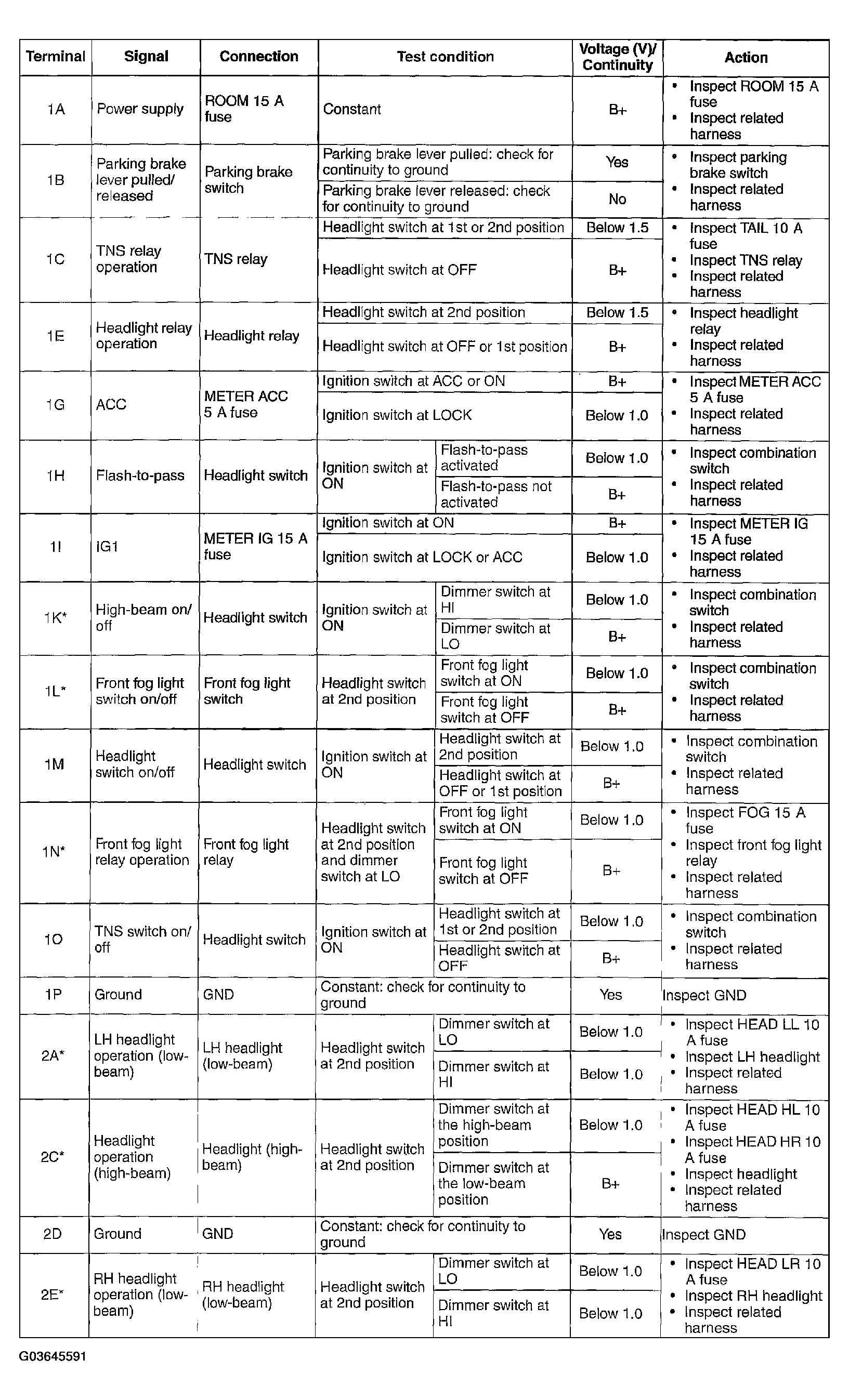

Fig 2: Auto Light-Off Control Module Terminal Voltage List (Reference)

Courtesy of MAZDA MOTORS CORP.
