Back-Up Light Switch Removal/Installation [G35M-R]
WARNING:
This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Disconnect the negative battery cable.
Remove in the order indicated in the table.

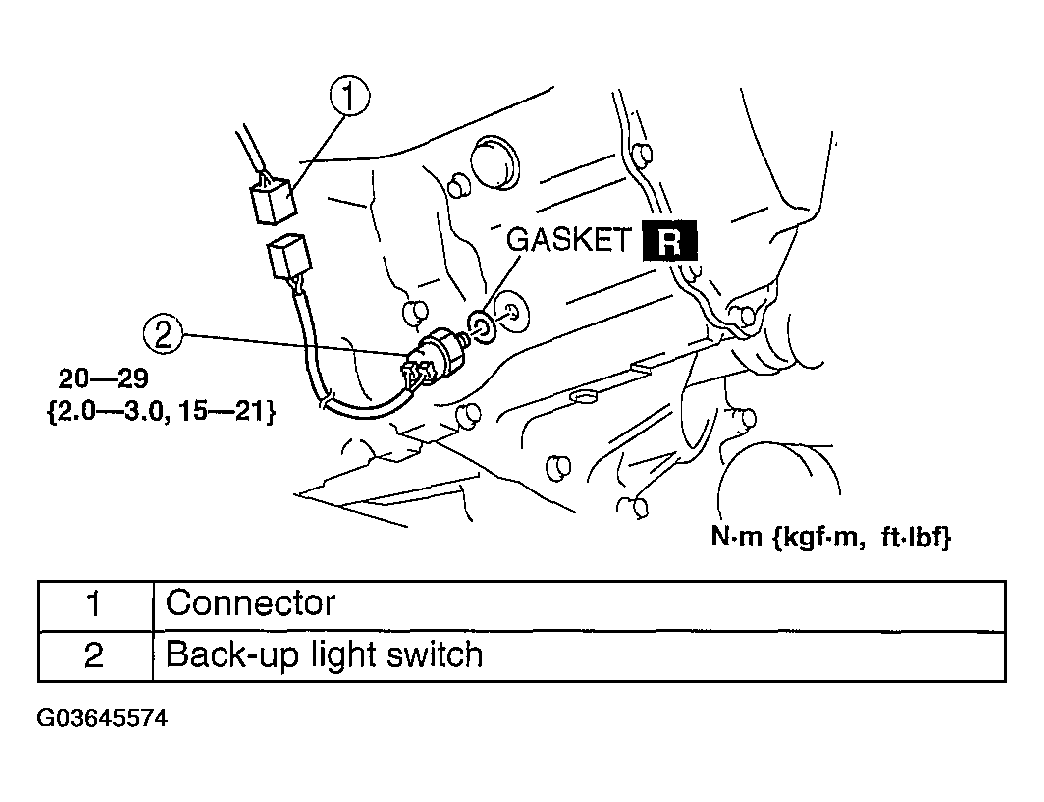

Fig 1: Back-Up Light Switch Removal Sequence (G35M-R) (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
