Combination Switch Disassembly/Assembly
WARNING:
This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
Disassemble in the order indicated in the table.

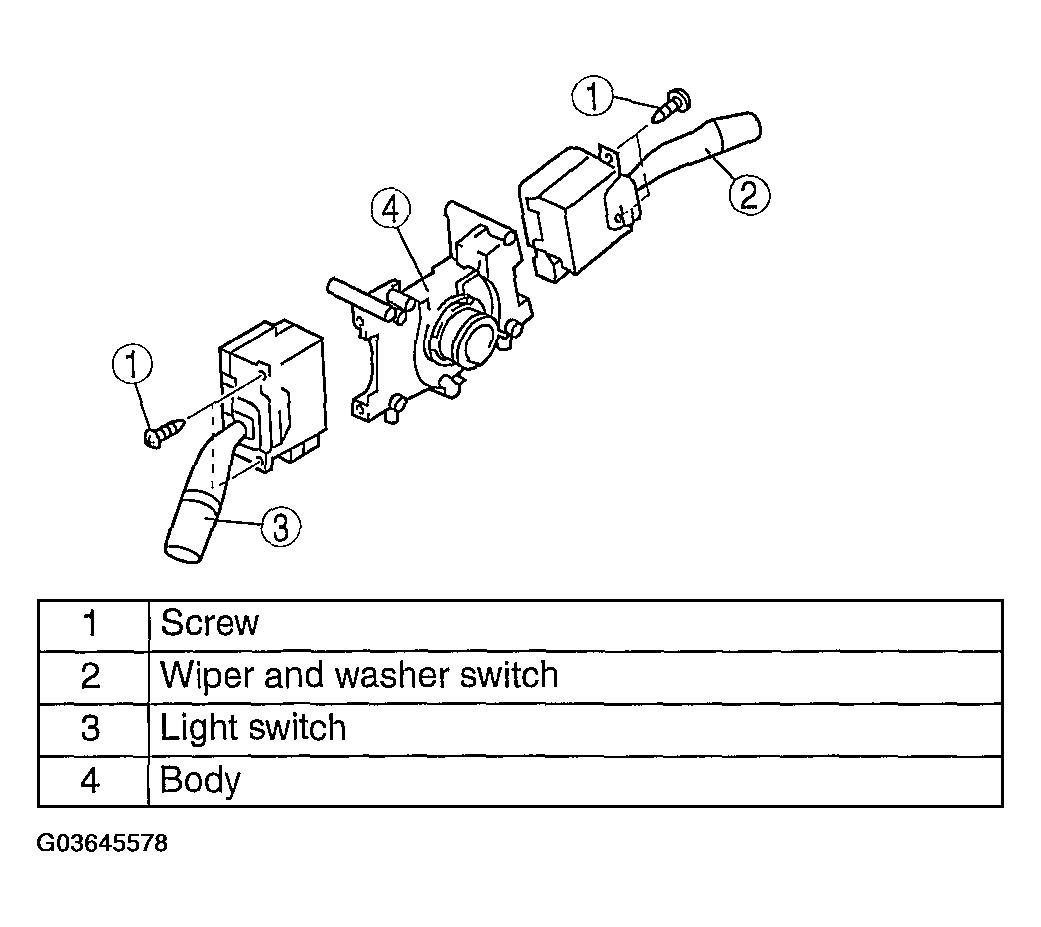

Fig 1: Combination Switch Disassembly Sequence
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
