Flasher Control Module Inspection
WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the connector to the flasher control module.
- Connect the negative battery cable.
- Measure the voltage at the flasher control module using a voltmeter.
- When inspecting terminal F for continuity, disconnect the flasher control module connector.

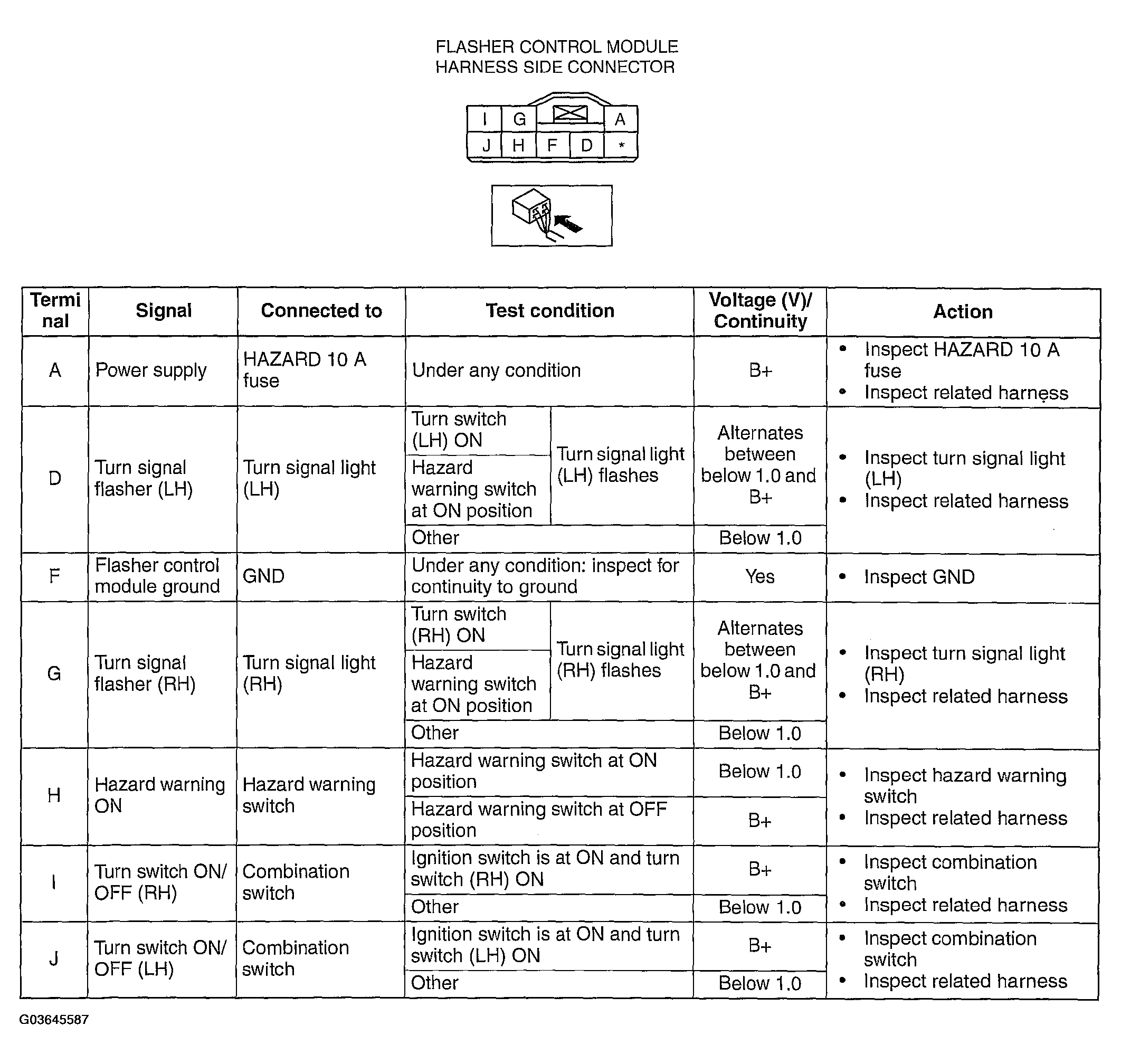

- If the value are not as specified in the Terminal Voltage List (Reference), inspect the parts under "Action" and related wiring harnesses.
- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the flasher control module.
