Front Map Light Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front map light. (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the front map light terminals using an ohmmeter.
- If not as specified, replace the front map light.

  Fig 1: Front Map Light Continuity Table
  Courtesy of MAZDA MOTORS CORP.

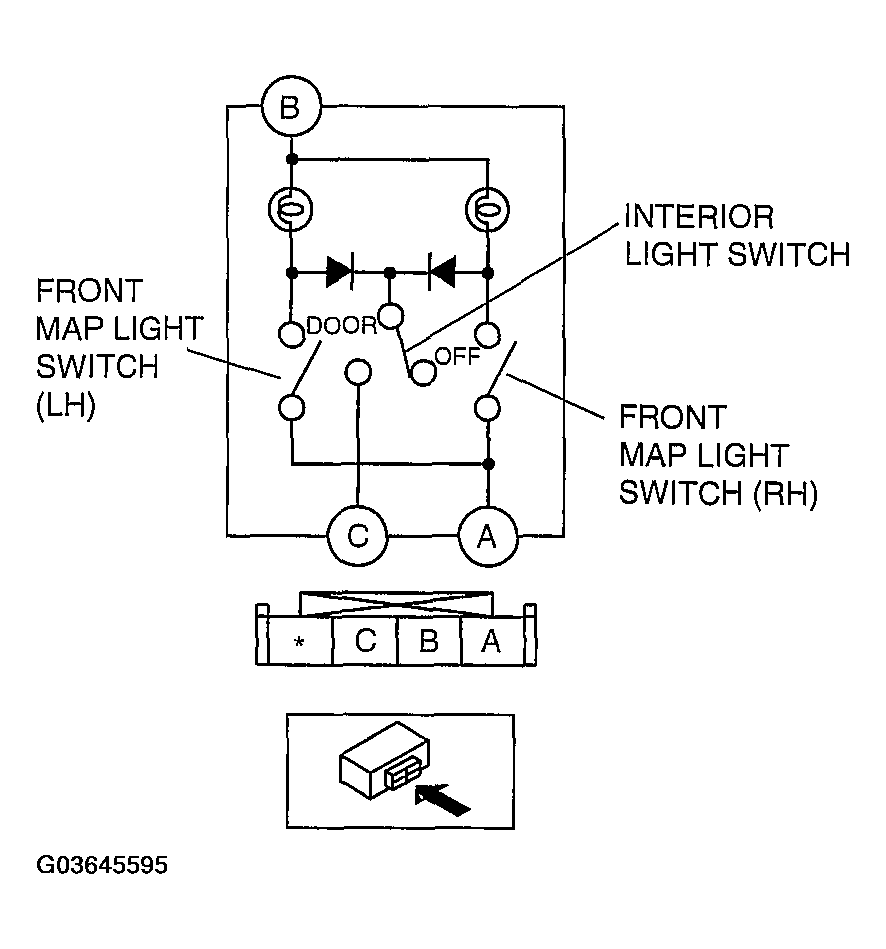

  Fig 2: Front Map Light Circuit Diagram And Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
