Front Map Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the table.

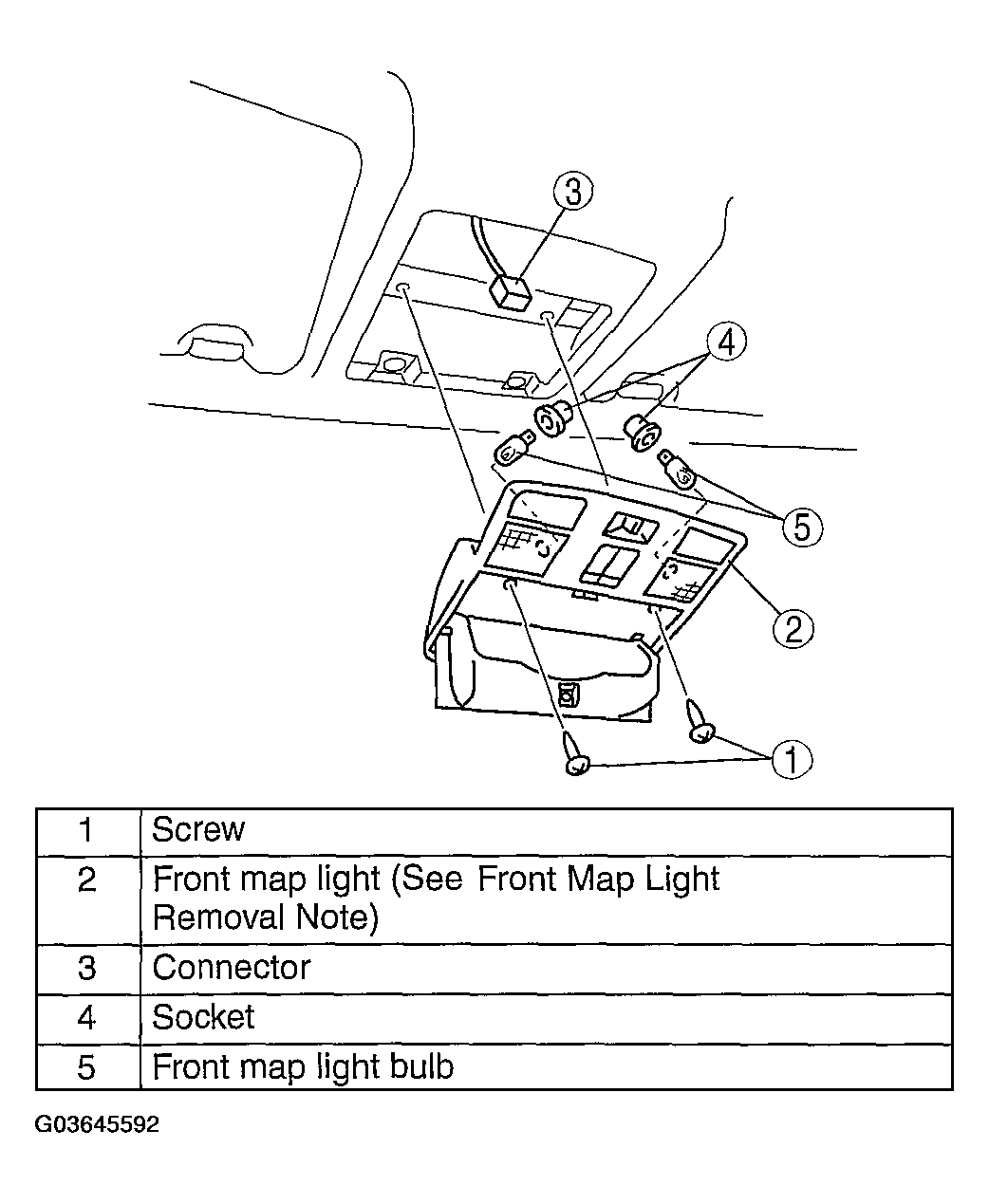

    Fig 1: Front Map Light Removal Sequence
    G03645592Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
