Panel Light Control Switch Inspection: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the panel light control switch connector.
  2. Connect the negative battery cable.
  3. Measure the voltage at each terminal (other than terminal D).
    • If the voltage is not as specified in the Terminal Voltage Table (Reference), inspect the parts under "Inspection item(s)".
  4. Disconnect the panel light control switch connector.
  5. Verify that continuity at terminal D is as indicated in the Terminal Voltage Table (Reference).
    • If there is any malfunction, inspect the parts under "Inspection item(s)".
      • If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the panel light control switch.

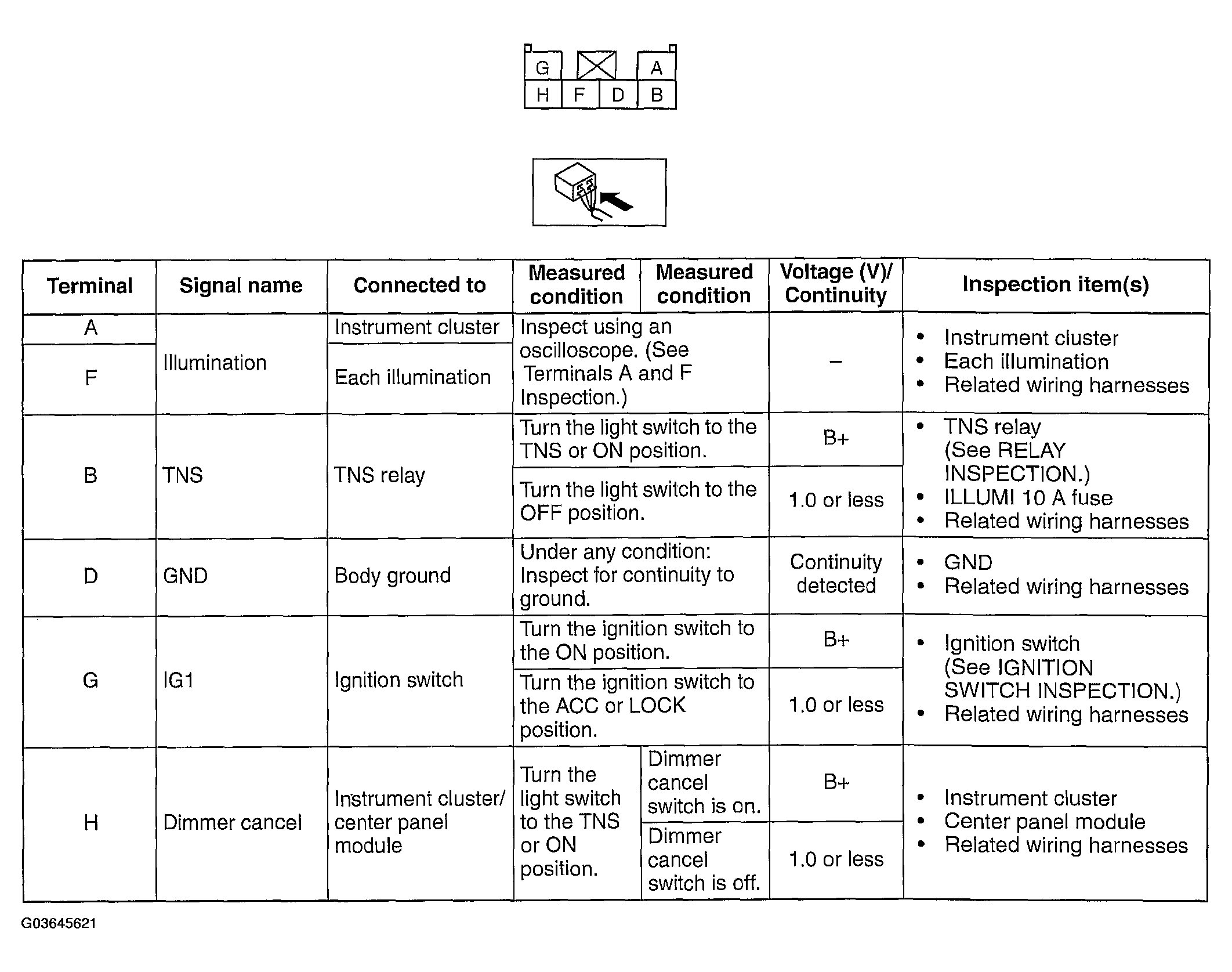

Fig 1: Panel Light Control Switch Terminal Voltage Table (Reference)
G03645621Courtesy of MAZDA MOTORS CORP.
