Caster Adjustment

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Jack up the front of the vehicle and support it on safety stands.
Remove the mounting block nuts.
CAUTION:
- Adjust the caster by turning the mounting block as shown so that the direction indicator is located at position A. If the direction indicator faces toward the inside of the vehicle, the camber and caster will be out of specifications.

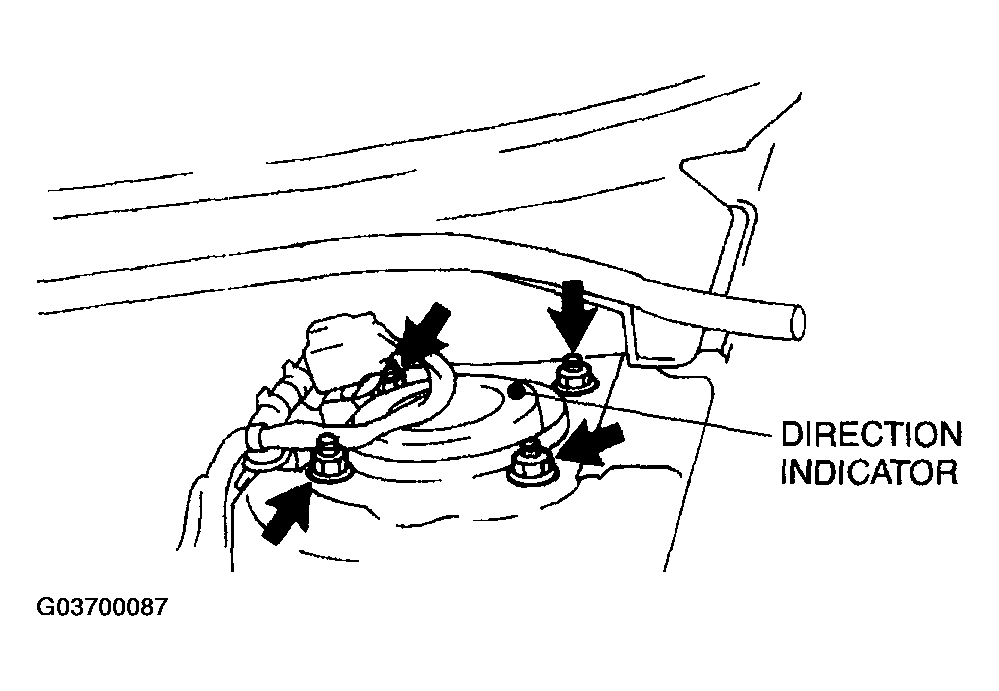

Fig 1: Identifying Mounting Block Nuts & Direction Indicator
Courtesy of MAZDA MOTORS CORP.
Push the mounting block downward, and turn the direction indicator to position A.
Adjustable value
1. -30'

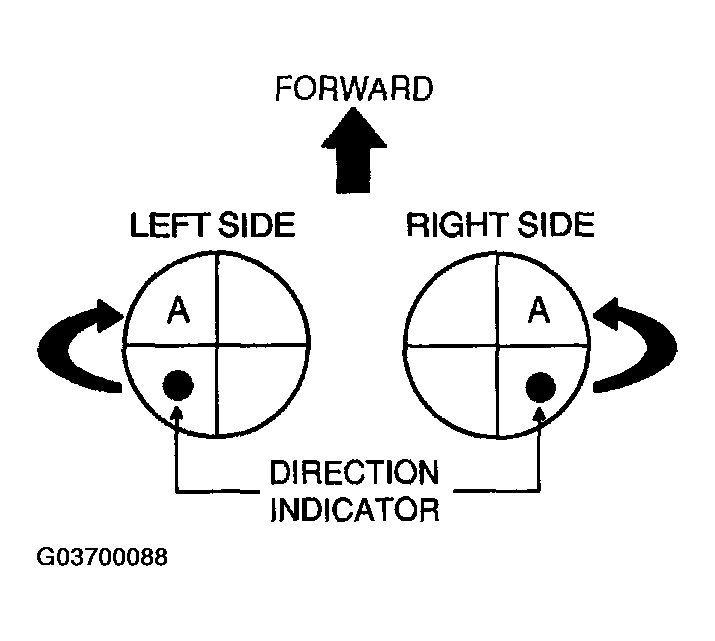

Fig 2: Adjusting Caster
Courtesy of MAZDA MOTORS CORP.
Install and tighten the mounting nuts to the specified torque.
Tightening torque
1. 46.1-62.7 N.m {4.71-6.39 kgf.m, 34.1-46.2 ft.lbf}
