Joint Shaft Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Assemble in the order indicated in the table.

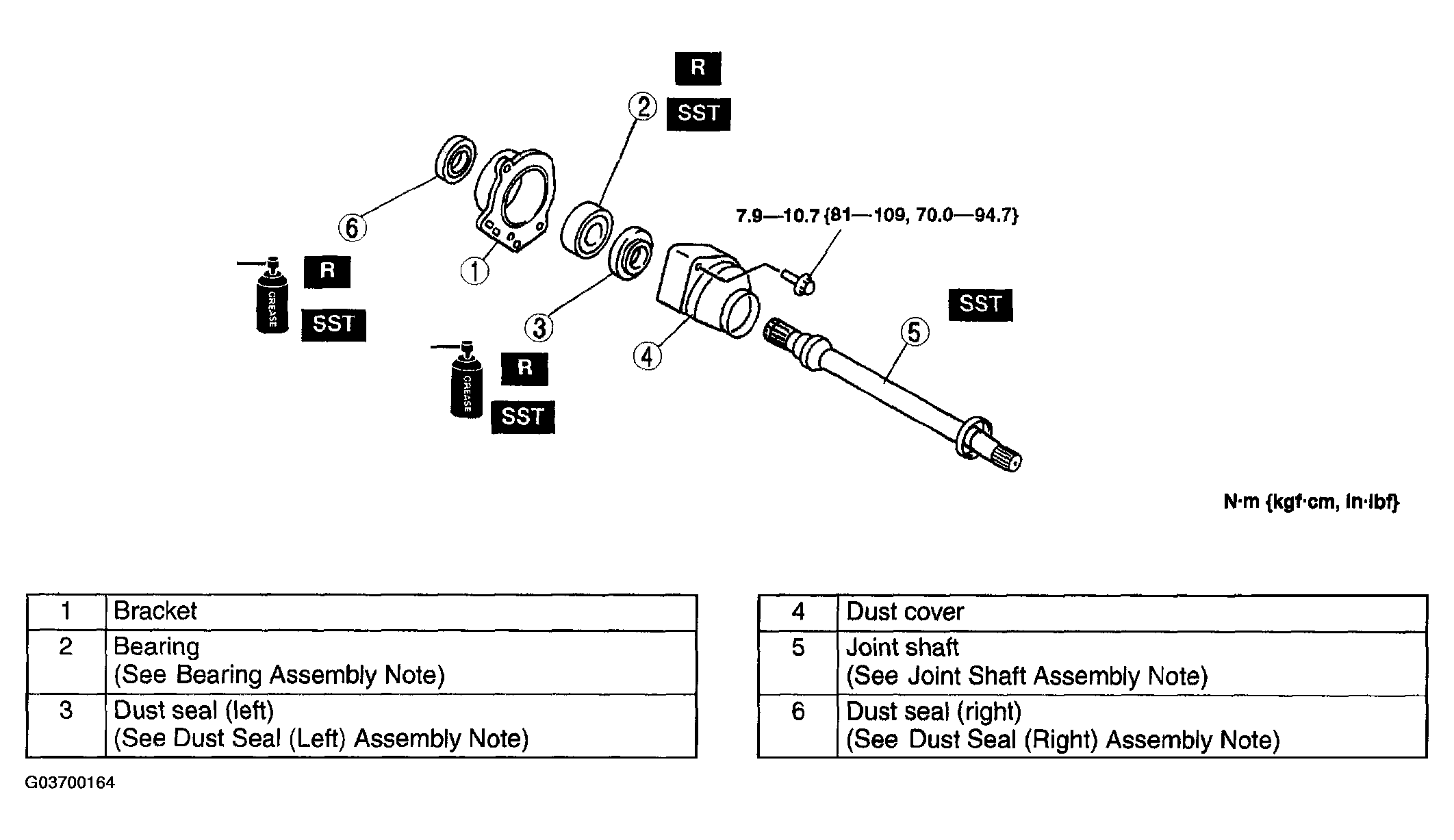

    Fig 1: Assembling Joint Shaft In Order
    G03700164Courtesy of MAZDA MOTORS CORP.
