Power Brake Unit Function Check (Inspection Using The Testers): Notes
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

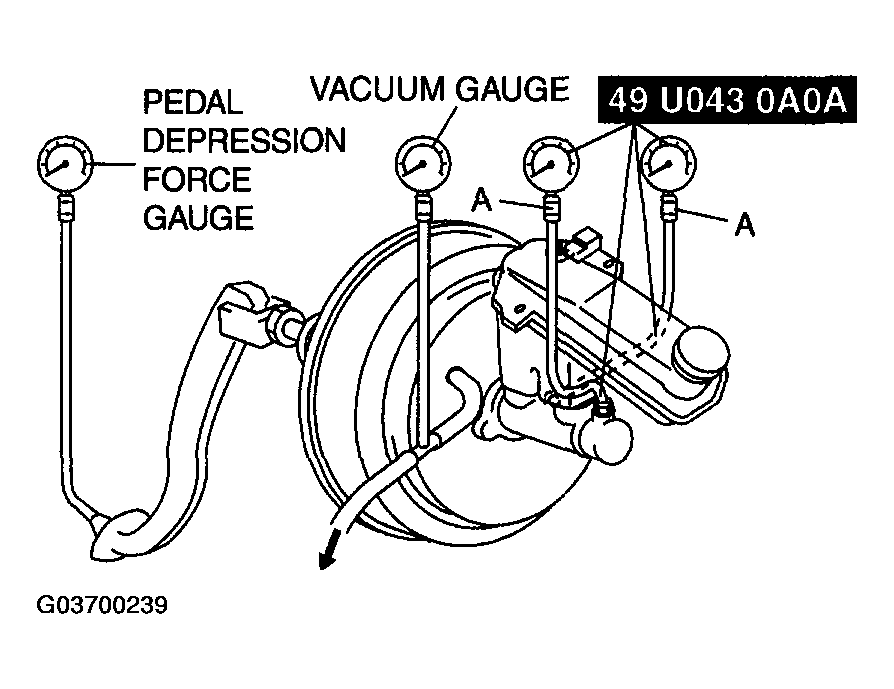

- Connect the SSTs
, vacuum gauge, and pedal depression force gauge as shown in the figure.NOTE:
- Use commercially available gauges and pedal depression force gauge.
- Bleed the air from the SST at gauge A.
- After bleeding the air from the SST, conduct the test as described in the following steps.
