Heater Pipe And Hose Components Removal/Installation: Notes
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT .)
- Remove in the order indicated in the table.
- Remove the following parts, depending on rear heater pipe to be removed.HEATER PIPE AND HOSE COMPONENTS - REMOVAL/INSTALLATION
Rear heater pipe to be removed Parts to be removed Rear heater pipe to be removed - Front crossmember (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
- Rear heater pipe No.1 Rear cooler pipe No. 1 (See REFRIGERANT LINES REMOVAL/INSTALLATION .)
Rear heater pipe No 2. - Rear cooler pipe No.2 (See FRONT CROSSMEMBER REMOVAL/INSTALLATION .)
- Install in the reverse order of removal.
- Refill the engine coolant. (See ENGINE COOLANT REPLACEMENT .)

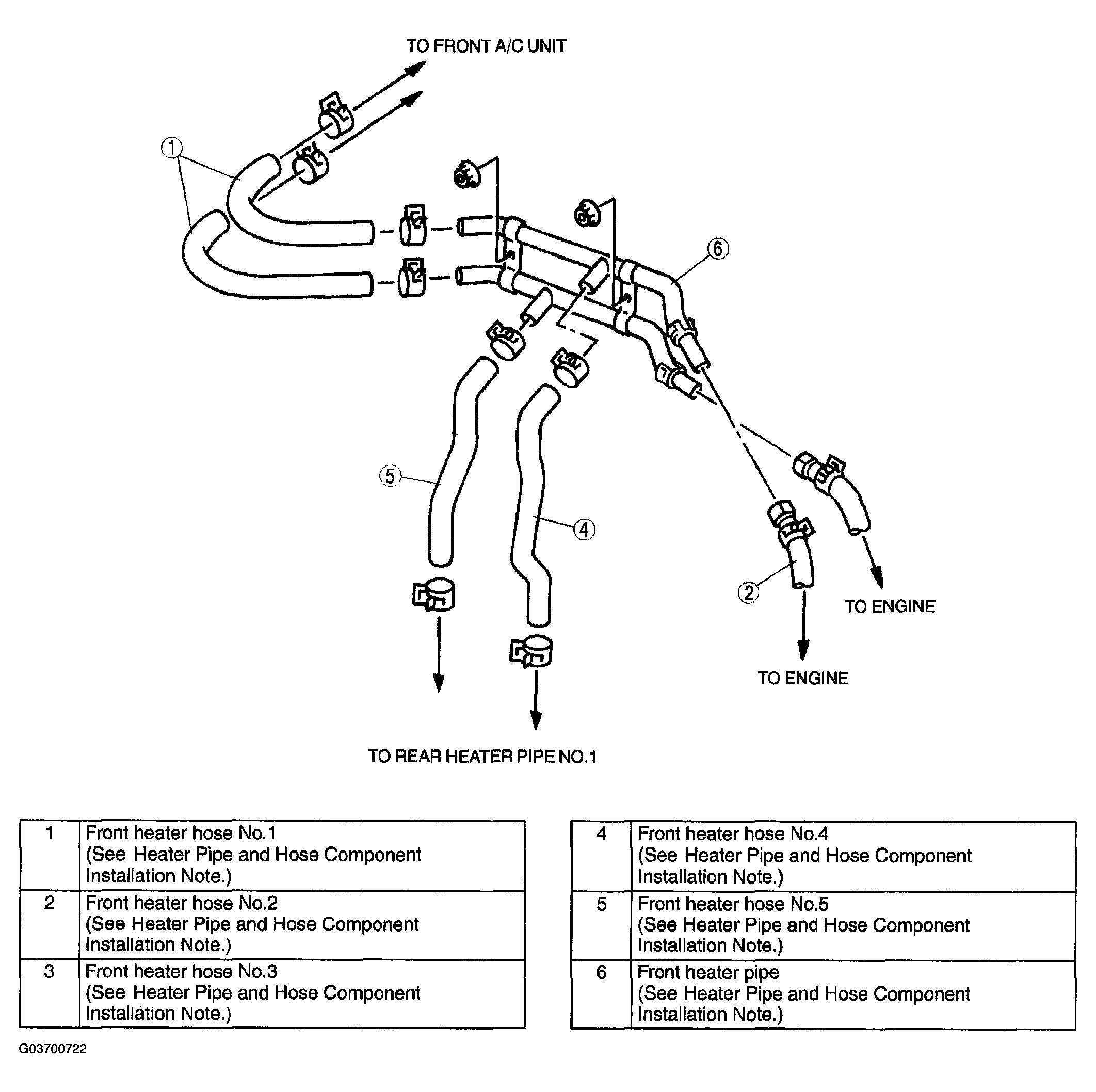

FRONT

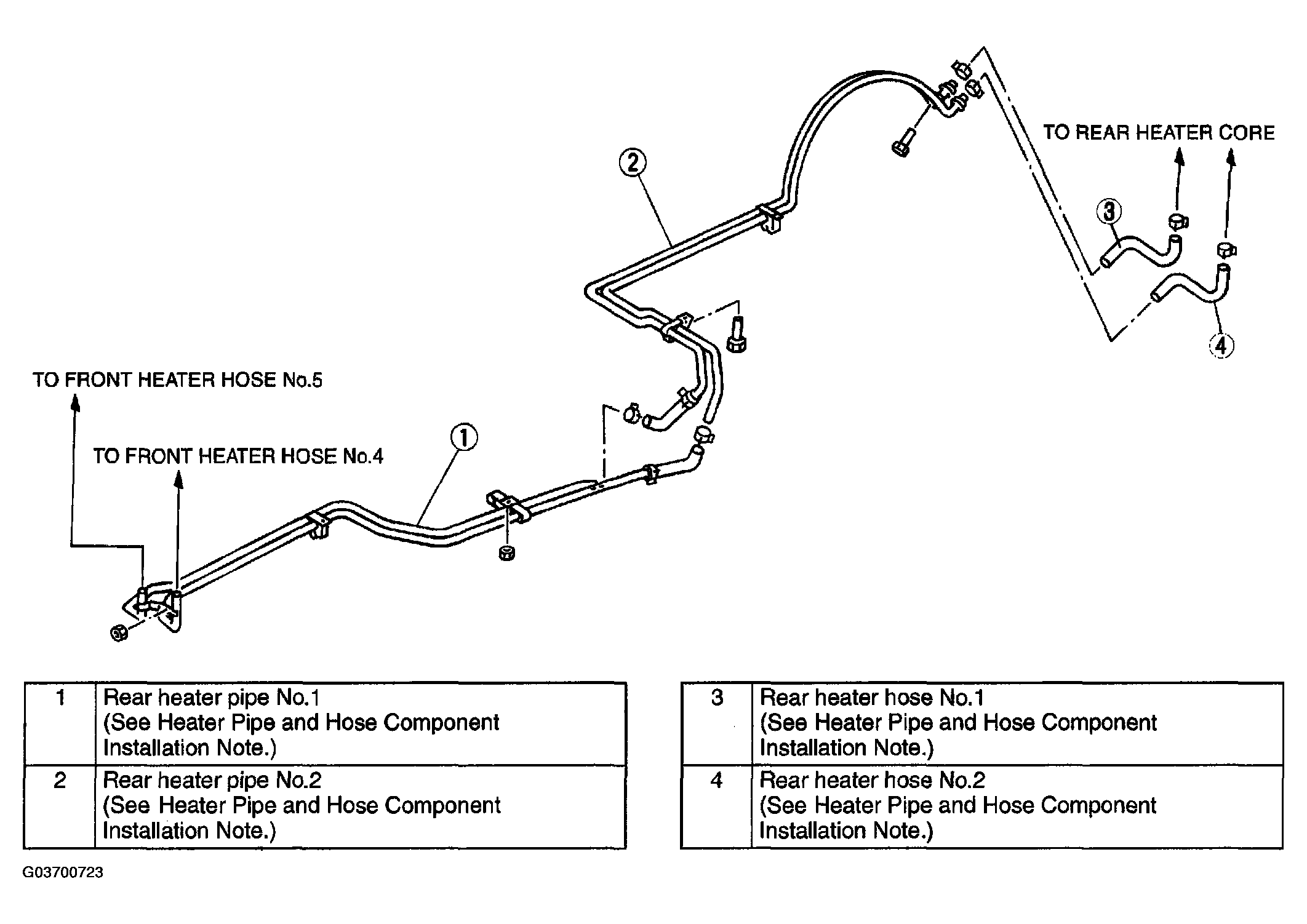

REAR
