Seat Weight Sensor Control Module Removal/Installation (Two-Step Deployment Control System)

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When the seat weight sensor control module is replaced with a new one, perform the seat weight sensor calibration using the WDS or equivalent. (See SEAT WEIGHT SENSOR CALIBRATION (TWO-STEP DEPLOYMENT CONTROL SYSTEM) .)

Disconnect the negative battery cable.
Remove the passenger's seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
Remove the seat under tray. (See FRONT SEAT DISASSEMBLY/ASSEMBLY .)
Remove in the order indicated in the table.

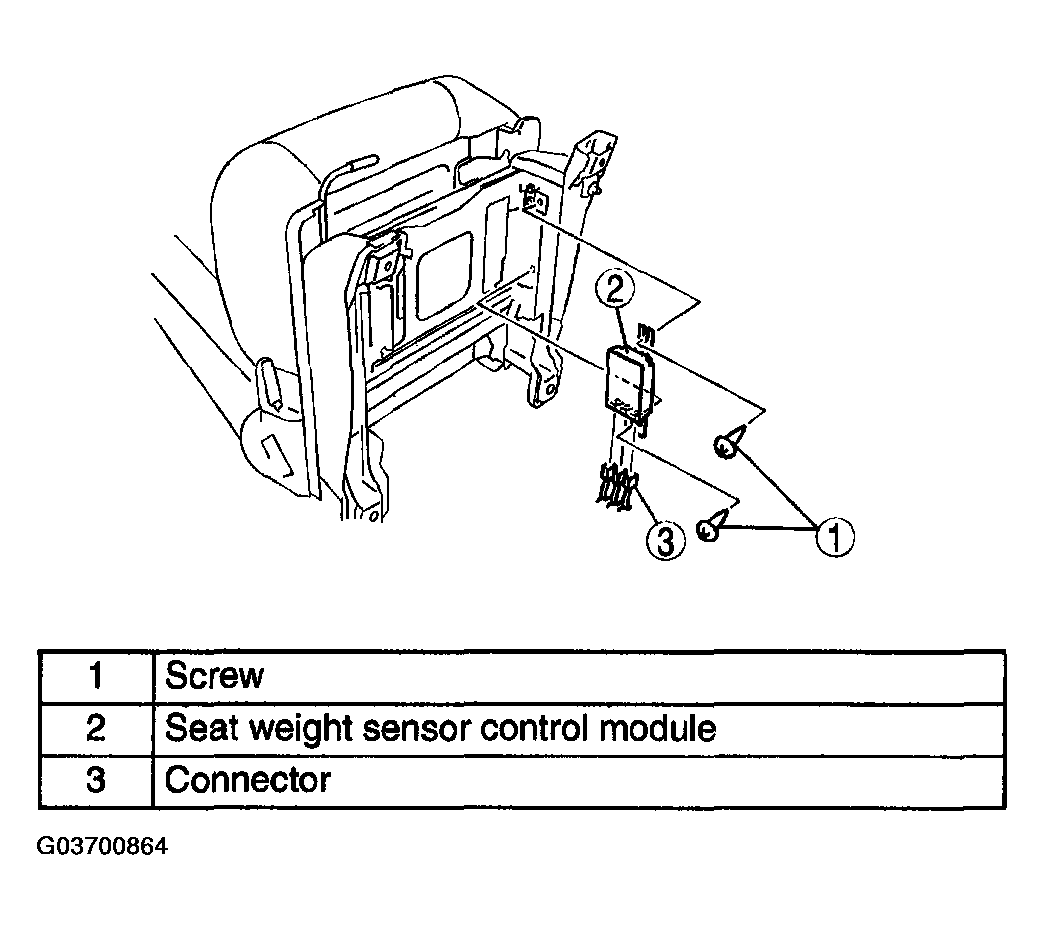

Fig 1: Removing Seat Weight Sensor Control Module (Two-Step Deployment Control System)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
