A/C Unit Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
CAUTION:
- If a non-specified grease is used, it may result in abnormal noise or improper operation of the links. Apply only the specified grease to each link.
Assemble in the reverse order of disassembly.

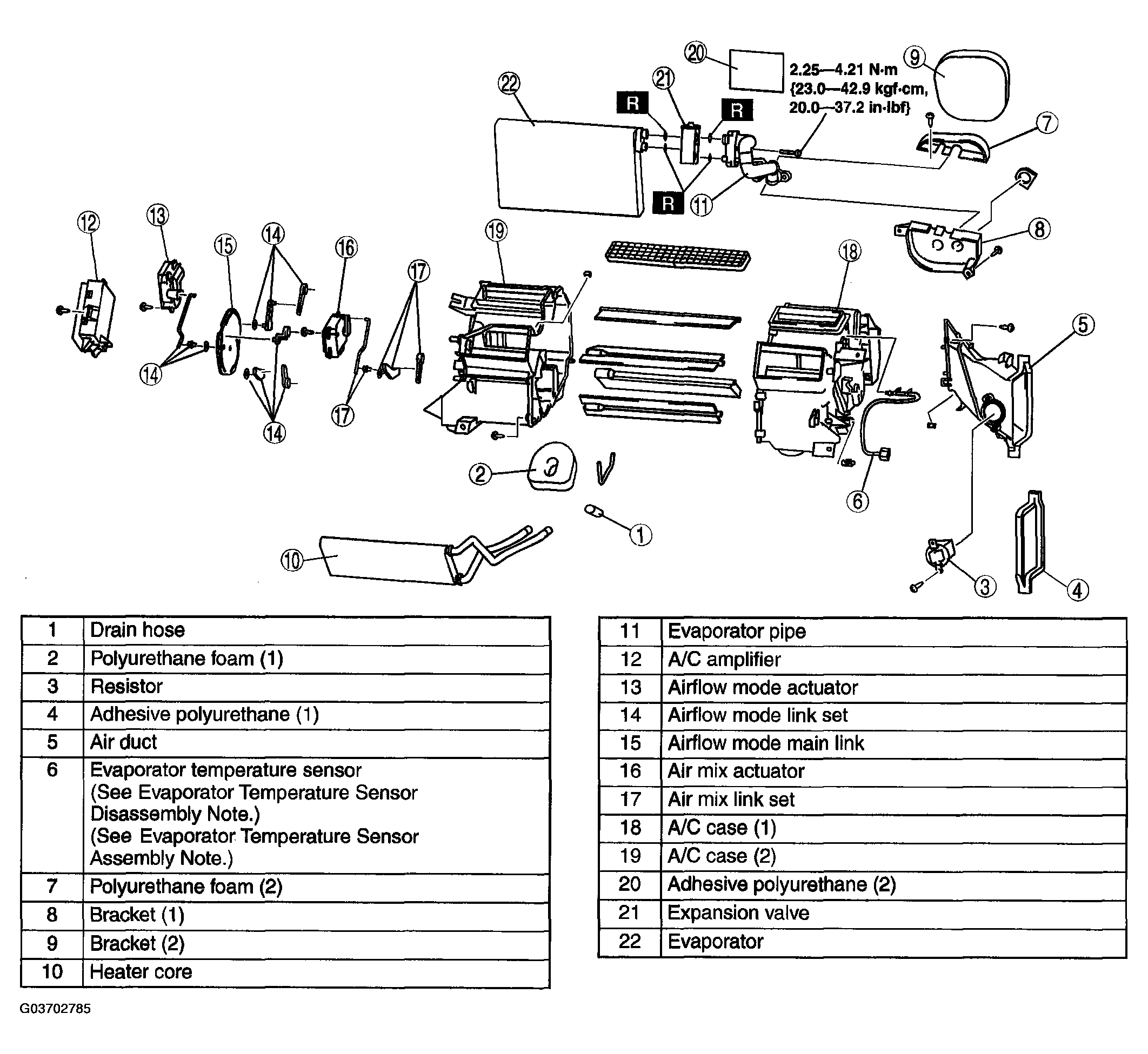

Fig 1: Exploded View Of A/C Unit With Torque Specification
Courtesy of MAZDA MOTORS CORP.
