Base Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Cut away all of the original sealant using a razor.
- Clean and degrease the ceramic coating on the glass and the base.
- Apply primer to the bonding area of the glass and the base.CAUTION:
- Keep the area free of dirt and grease, and do not touch the surface. Otherwise, the primer may not properly bond to the surface of the glass.

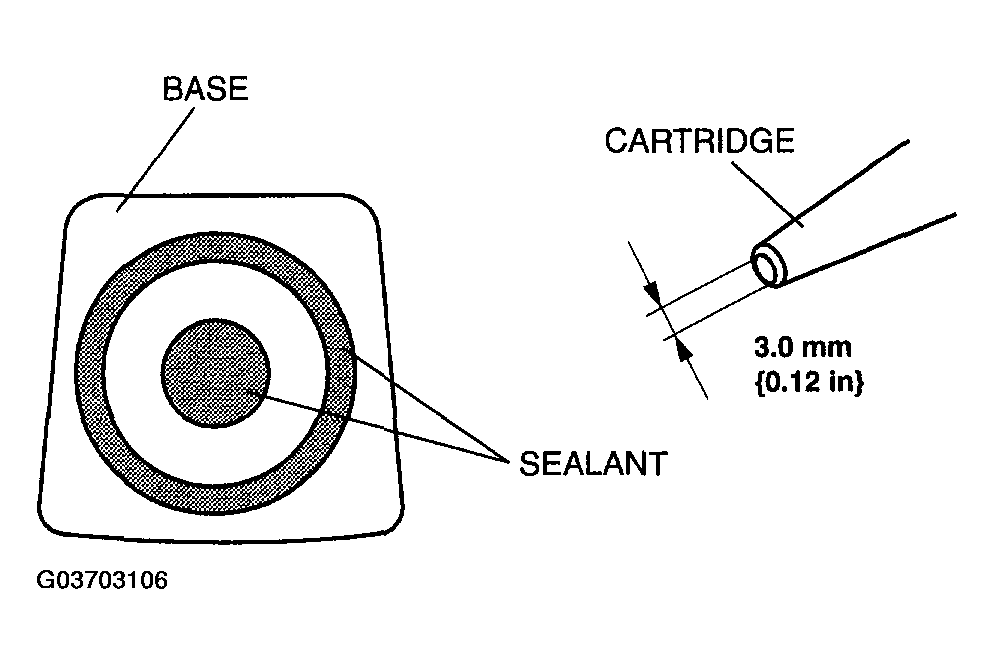

- Apply a 3.0 mm {0.12 in}
layer of sealant to the base.NOTE:
- Use only glass primer on the glass, and body primer on the base. Allow the primer to dry for approx. 30 min.
- Center the base in the ceramic coating and press it onto the glass.
- Use isopropyl alcohol to remove any excess repair sealant.
Hardening time of sealant
SEALANT HARDENING TIME SPECIFICATIONTemperature Surface hardening time Time required until vehicle can be put into service 5 °C {41 °F} Approx. 1.5 h Approx. 12 h 20 °C {68 °F} Approx. 1 h Approx. 4 h 35 °C {95 °F} Approx. 10 min. Approx. 2 h - Install the rearview mirror.
