Restraints Control Module (RCM): Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Connect negative battery cable. With air bag simulators installed at all deployable devices, verify system. See VERIFY SYSTEM under DIAGNOSTICS.
Disconnect negative battery cable. Wait at least one minute for back-up power supply to deplete stored energy. Activate air bag system. See ACTIVATING SYSTEM under DISABLING & ACTIVATING AIR BAG SYSTEM. Check AIR BAG warning light for proper system function. See SYSTEM OPERATION CHECK .

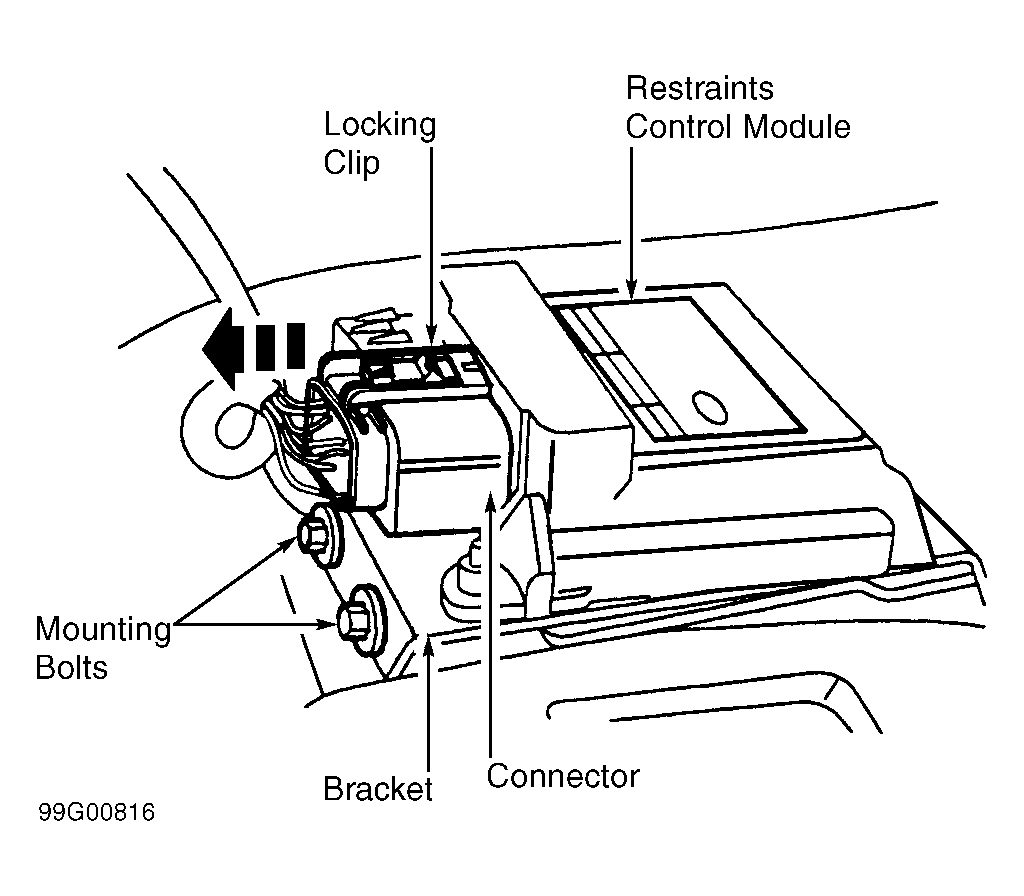

Fig 1: Removing Restraints Control Module (RCM)

Courtesy of MAZDA MOTORS CORP.
