Drive Pinion Disassembly Note

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push out the drive pinion by attaching a miscellaneous locknut to the drive pinion, and tapping it with a copper hammer.

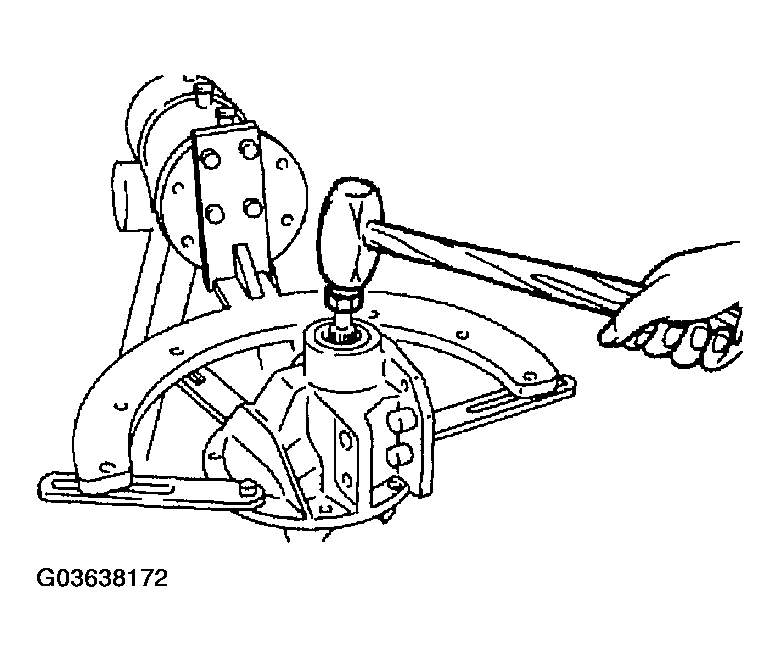

    Fig 1: Pushing Out Drive Pinion
    G03638172Courtesy of MAZDA MOTORS CORP.
