Propeller Shaft Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crossmember bracket. (See CROSSMEMBER BRACKET REMOVAL/INSTALLATION .)
Remove the rear crossbar (only vehicle equipped with 16 inch wheel). (See DIFFERENTIAL REMOVAL/INSTALLATION .)
Remove the presilencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

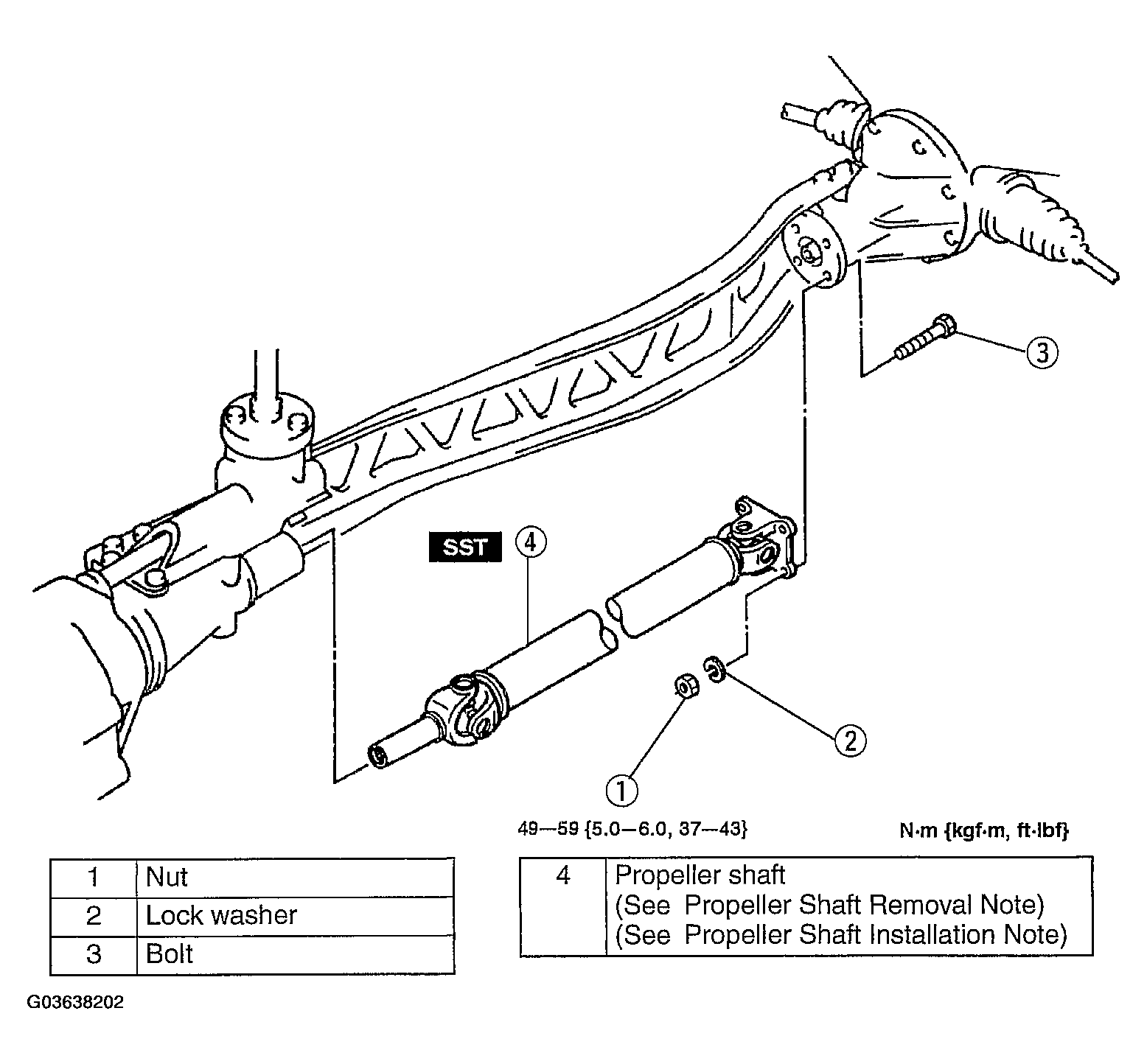

Fig 1: Exploded View Of Propeller Shaft & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
