Blower Unit Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the glove compartment.
Remove the bracket.

Fig 1: Removing Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the seal plate.

Fig 2: Removing Seal Plate
Courtesy of MAZDA MOTORS CORP.
Remove in the order indicated in the table.

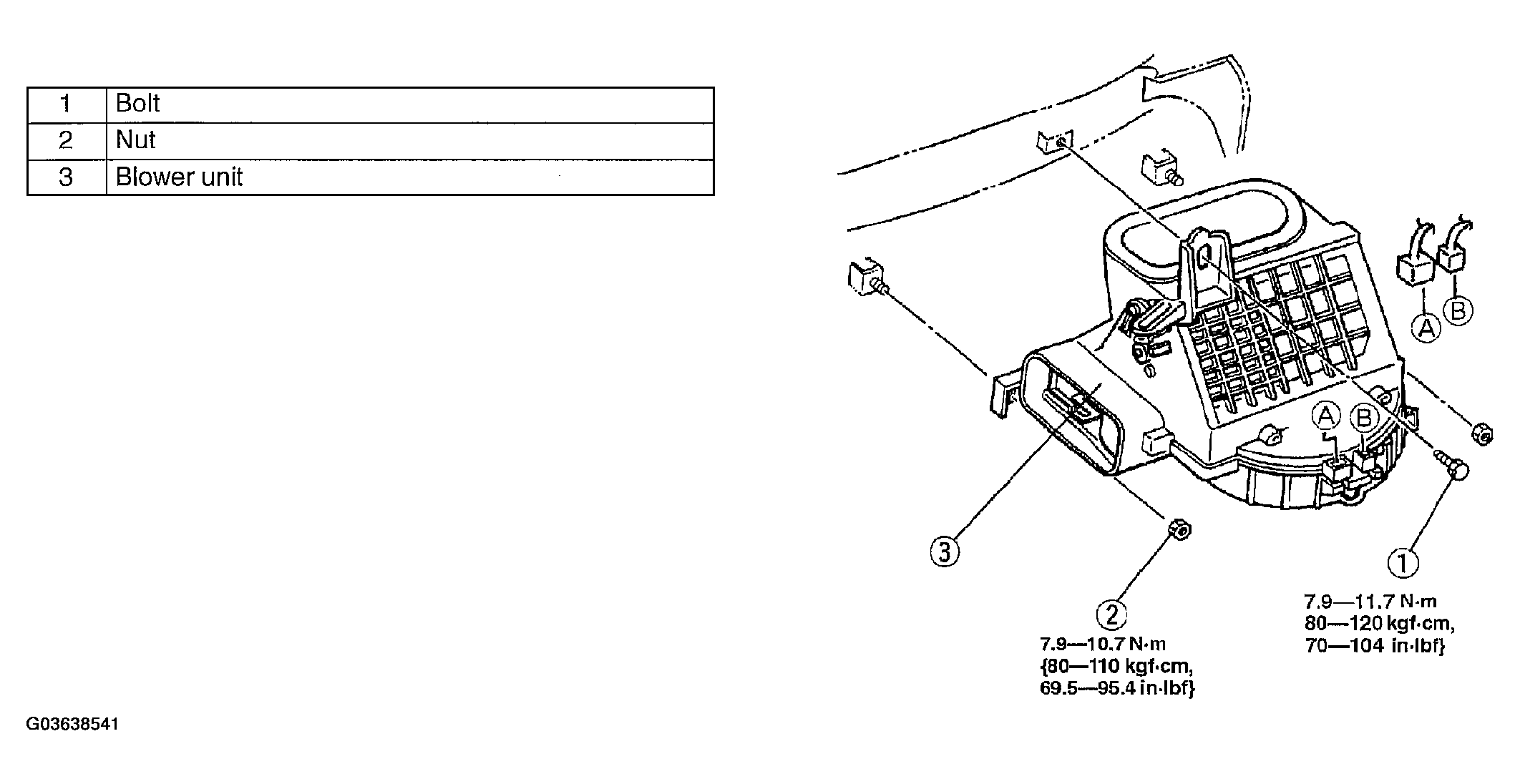

Fig 3: Removing Blower Unit Bolts - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
