Door Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front fender panel. (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
Remove the door speaker. (See DOOR SPEAKER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

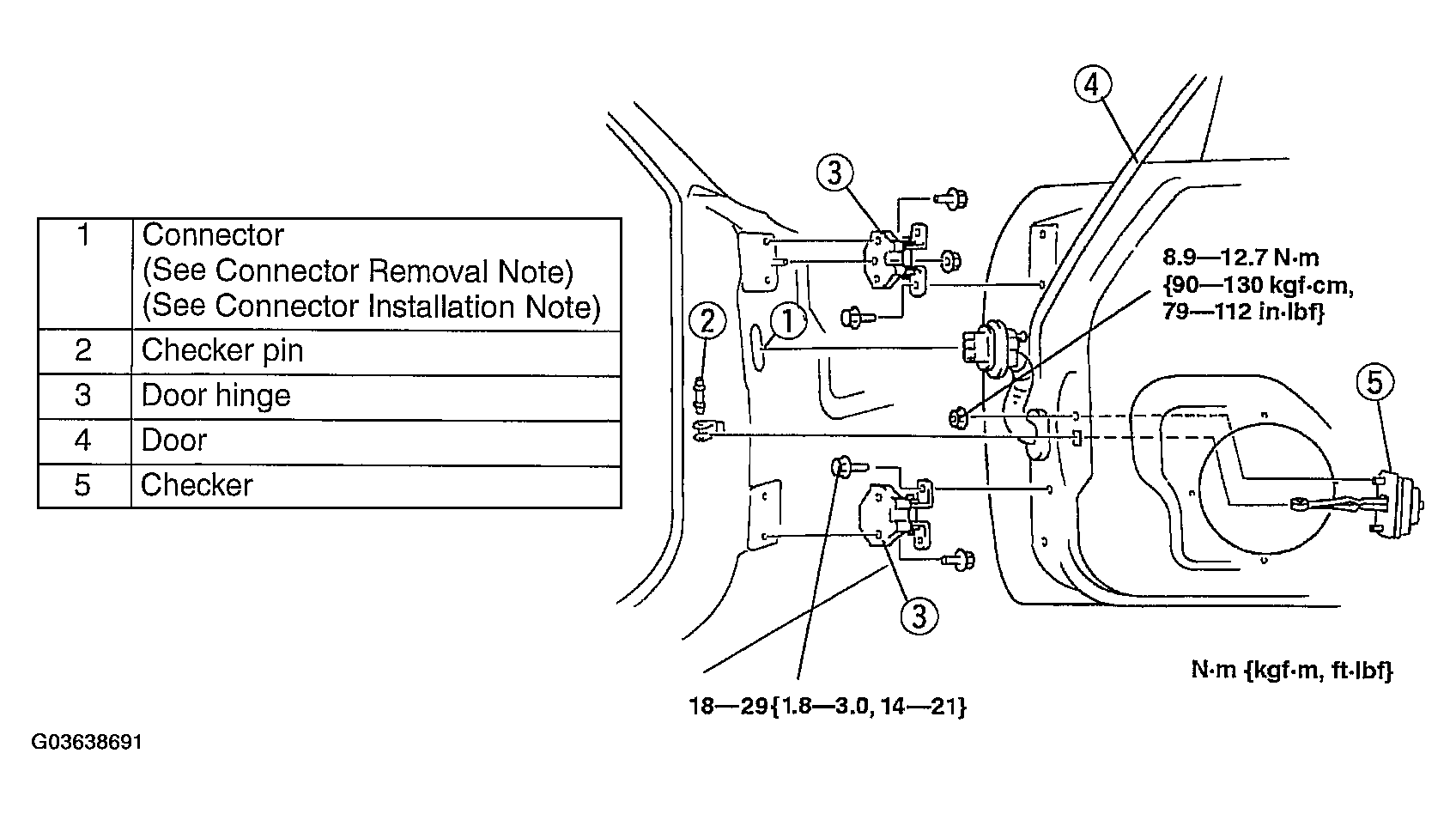

Fig 1: Removing Door - With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the door. (See DOOR ADJUSTMENT .)
