DRL Control Module Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the lower panel.
  3. Remove in the order indicated in the table.

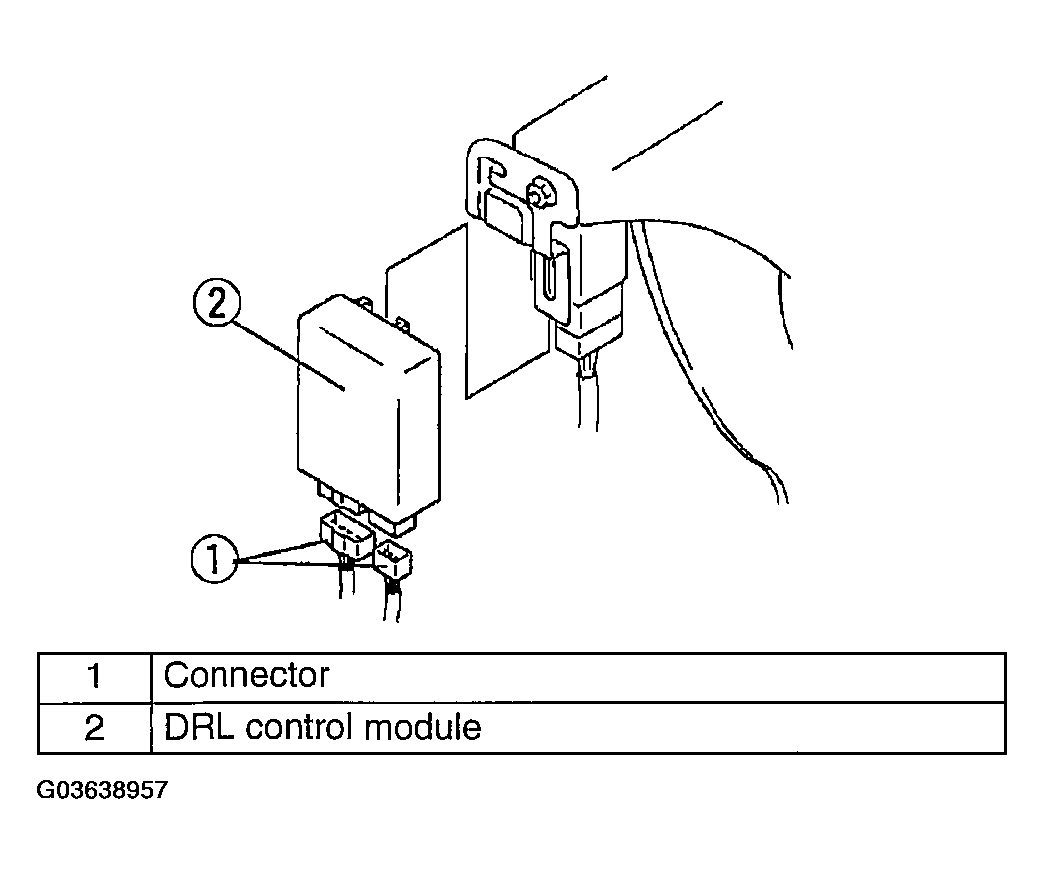

    Fig 1: Removing DRL Control Module
    G03638957Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
