Joint Box

Joint box is located under driver's side of instrument panel. See Fig 1 .

Fig 1: Locating Joint Box

Courtesy of MAZDA MOTORS CORP.

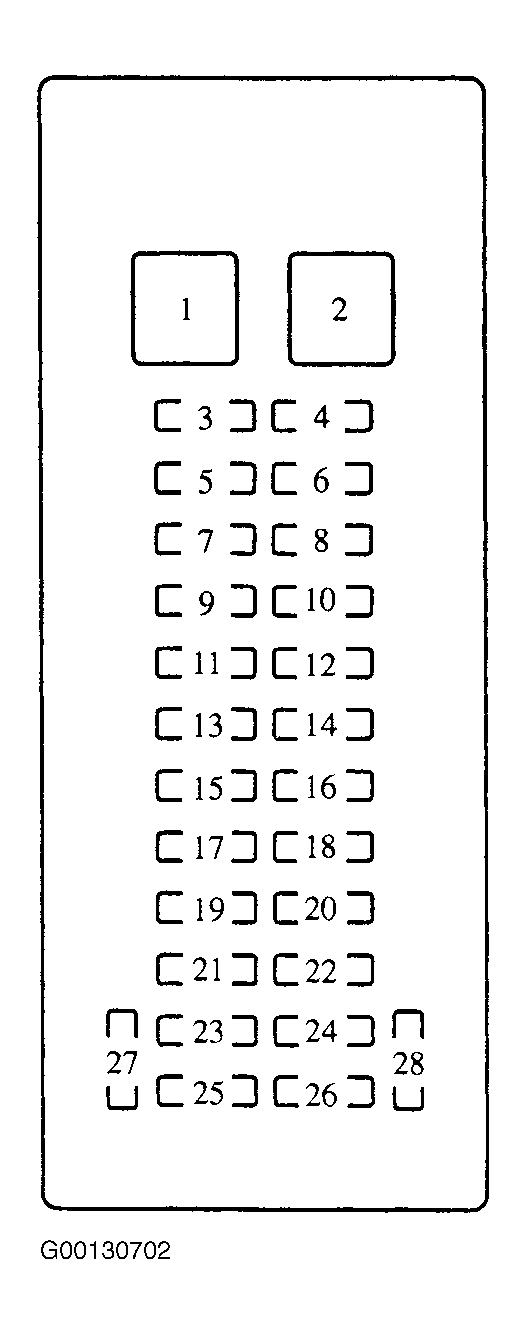

Fig 2: Identifying Joint Box Components (2000)

Courtesy of MAZDA MOTORS CORP.

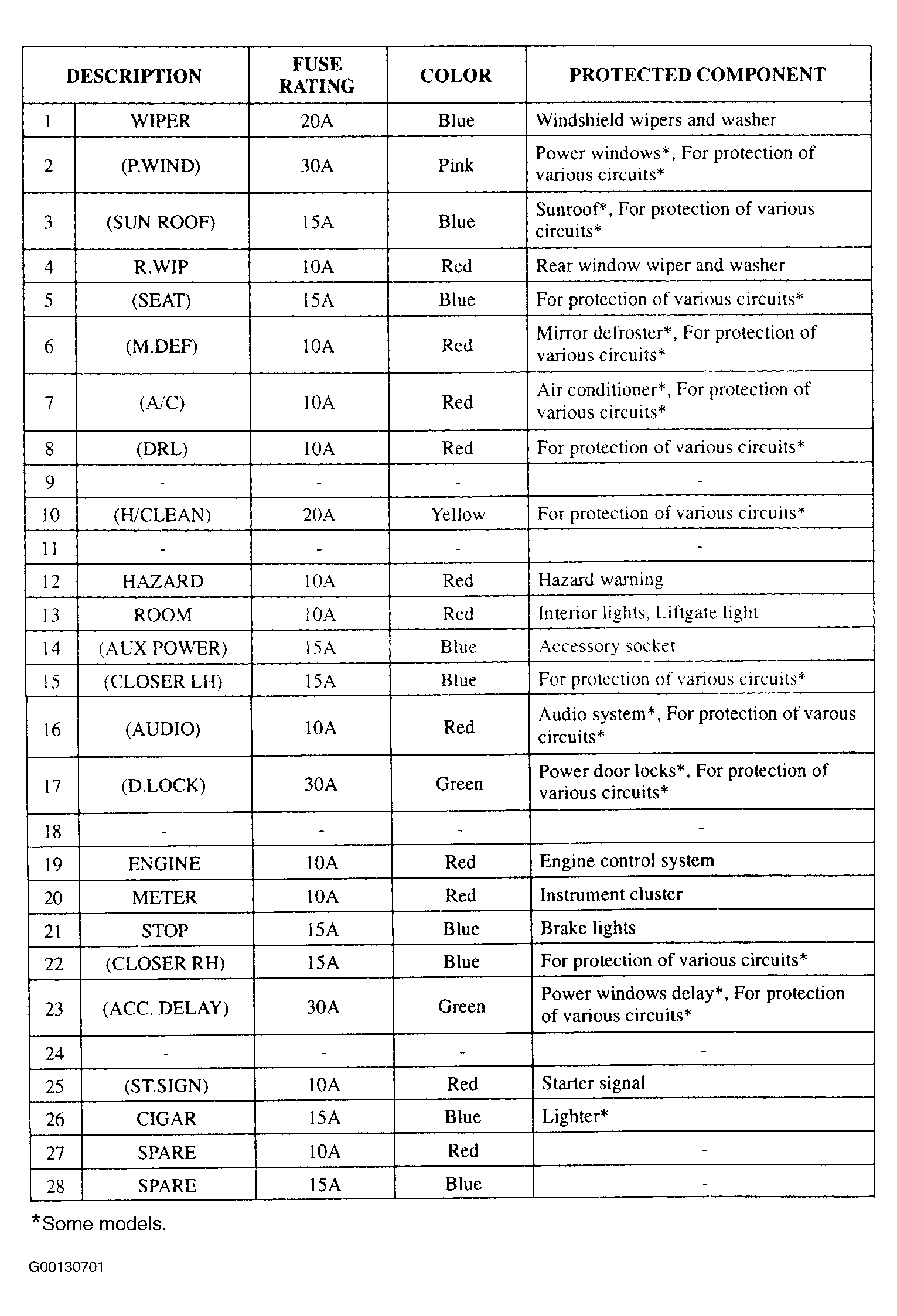

Fig 3: Instrument Joint Box Legend (2000)

Courtesy of MAZDA MOTORS CORP.

Fig 4: Identifying Joint Box Components (2001)

Courtesy of MAZDA MOTORS CORP.

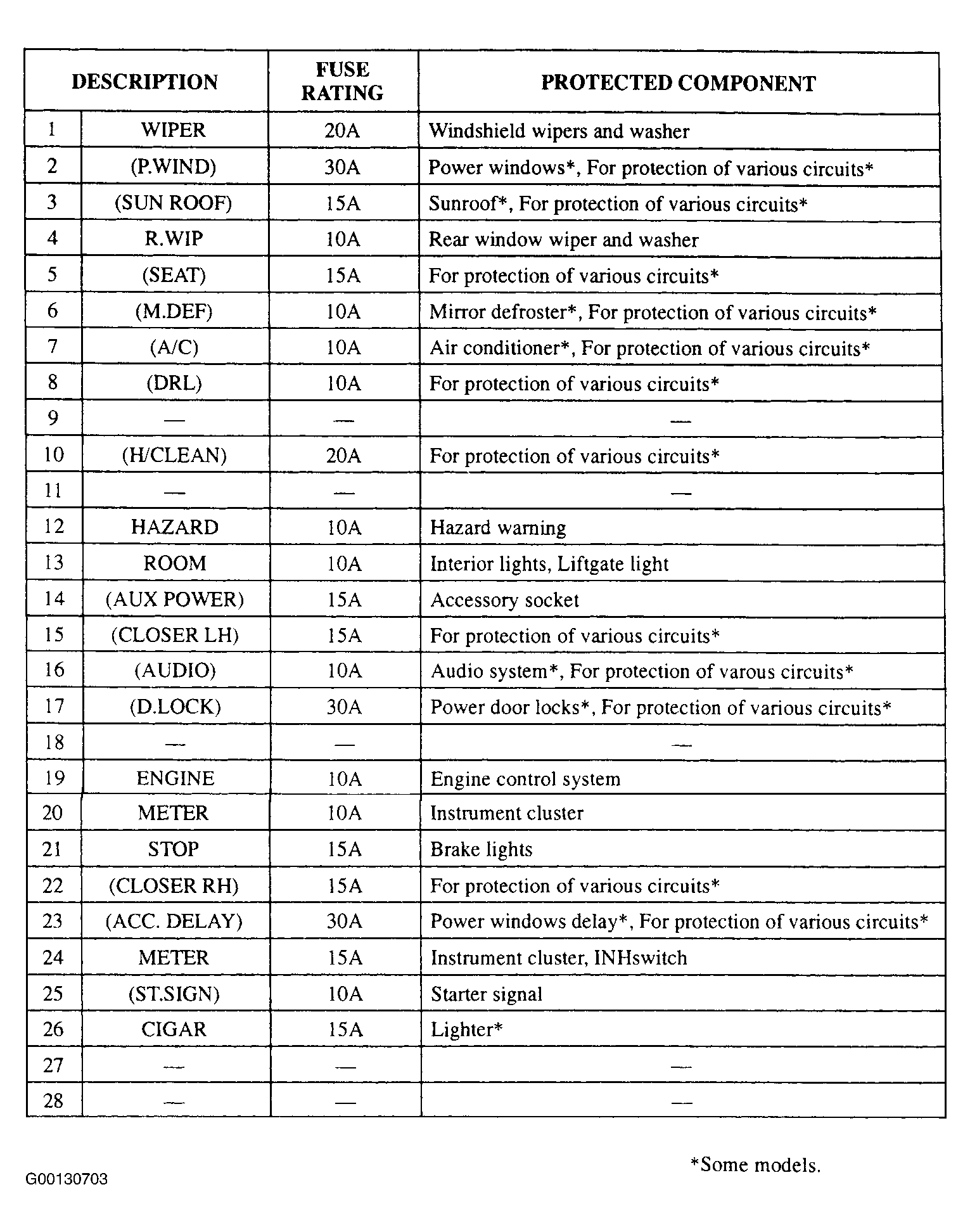

Fig 5: Joint Box Legend (2001)

Courtesy of MAZDA MOTORS CORP.
