Front Fog Light Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the mud guard.
Remove in the order indicated in the illustration.

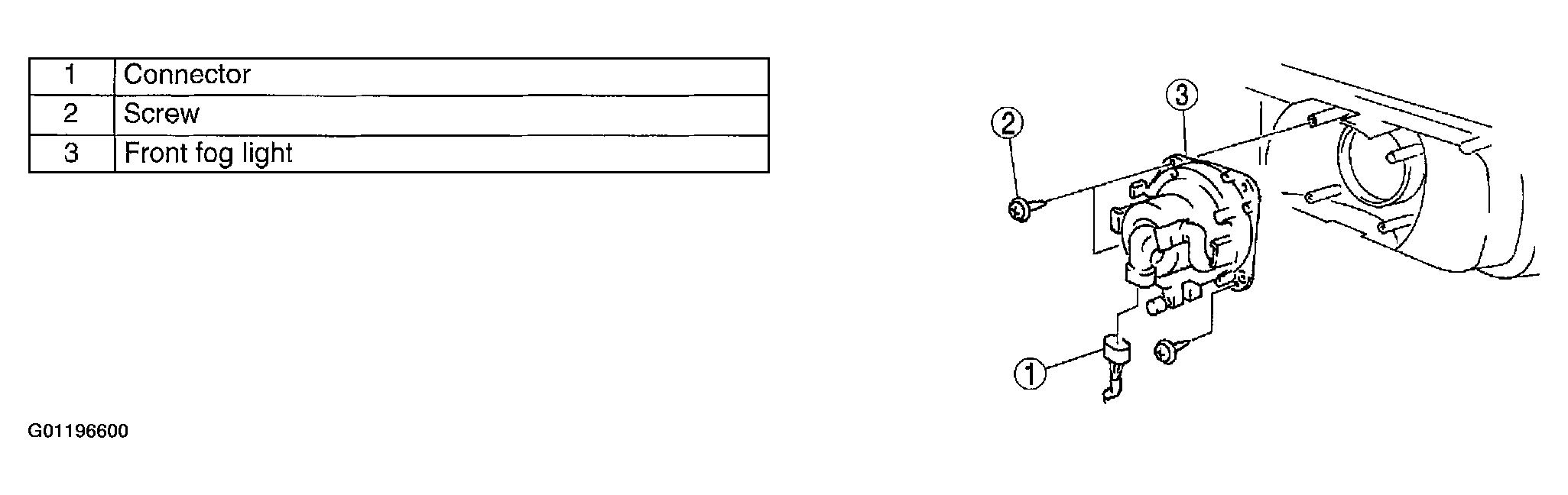

Fig 1: Removing Front Fog Light
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the front fog light aiming. See FRONT FOG LIGHT ADJUSTMENT .
