Headlight Removal/Installation

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the front combination light. See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .
Remove the front bumper. See FRONT BUMPER REMOVAL/INSTALLATION .
Remove in the order indicated in the illustration.

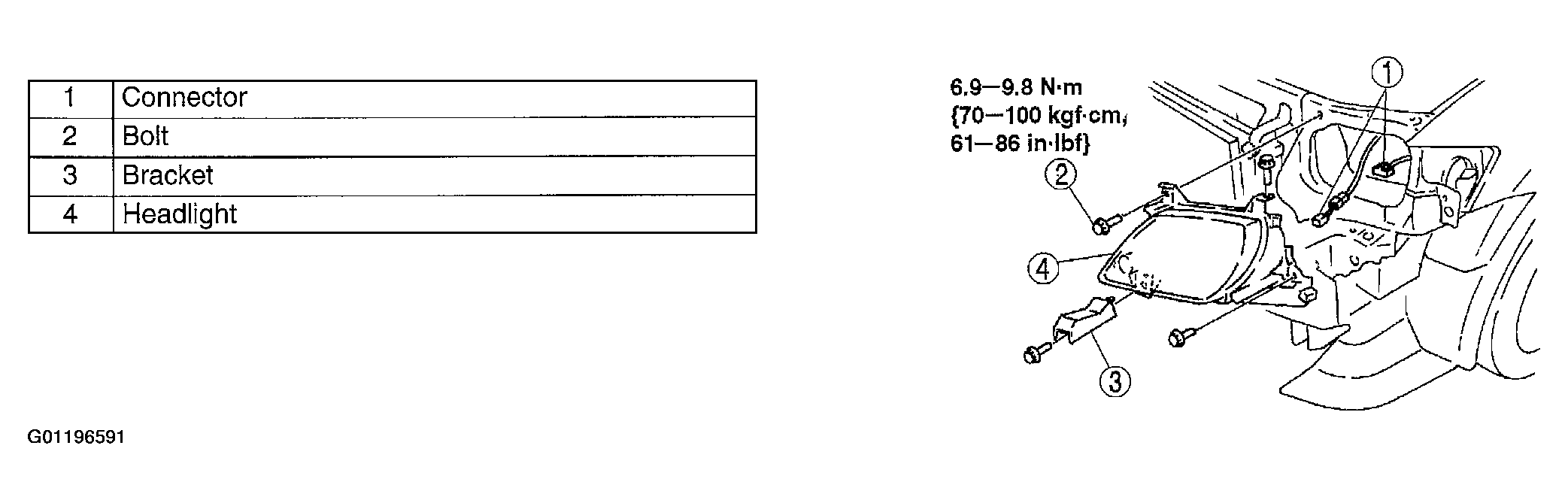

Fig 1: Removing Headlight
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
Adjust the headlight aiming. See HEADLIGHT ADJUSTMENT .
