High-Mount Brake Light Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the liftgate upper trim. See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

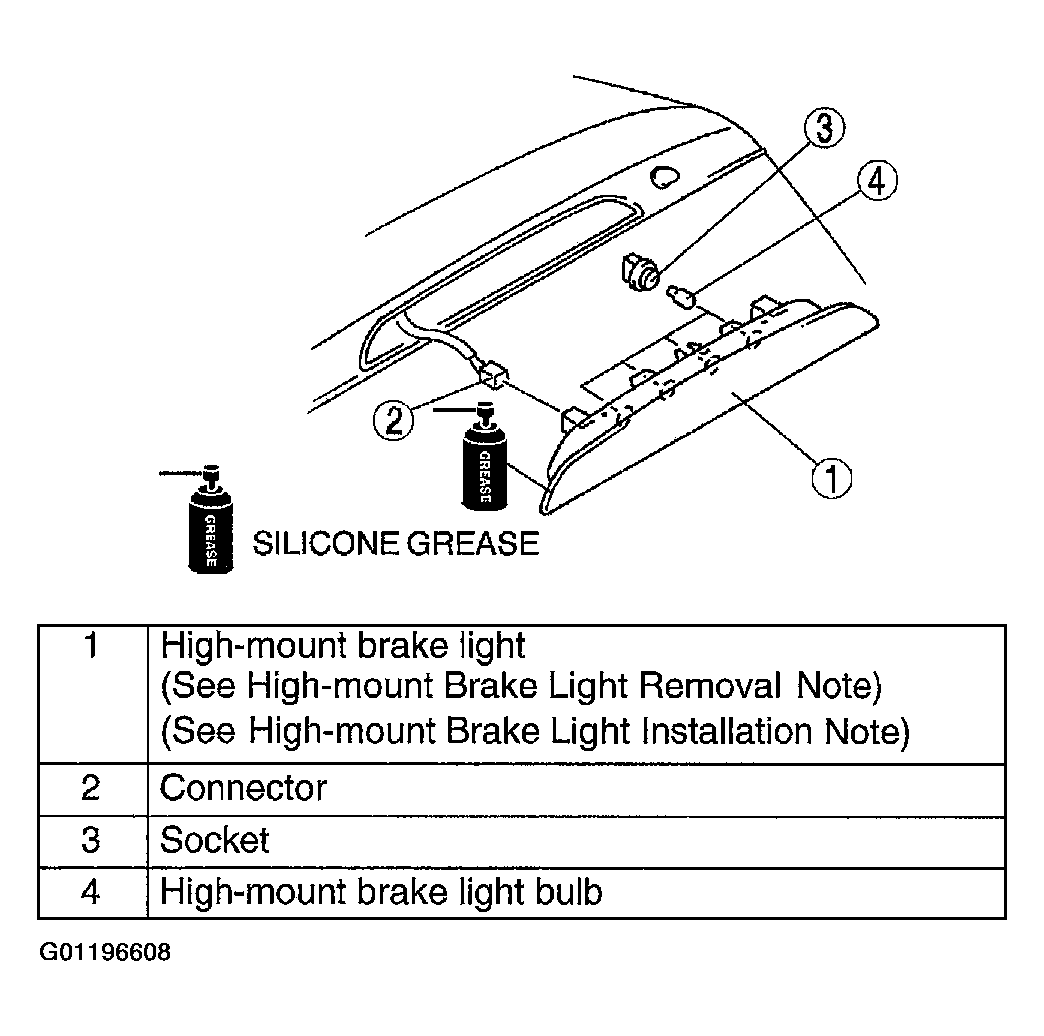

Fig 1: Removing High-Mount Brake Light
G01196608Courtesy of MAZDA MOTORS CORP.
