Dashboard Disassembly/Assembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster. See INSTRUMENT CLUSTER .
Remove center air vents. Remove screws attaching A/C-heater control unit to instrument panel and disconnect electrical connector. Remove the climate control unit.
Remove the audio unit.
Disassemble in the order indicated in Fig 1 .
Assemble in the reverse order of disassembly.

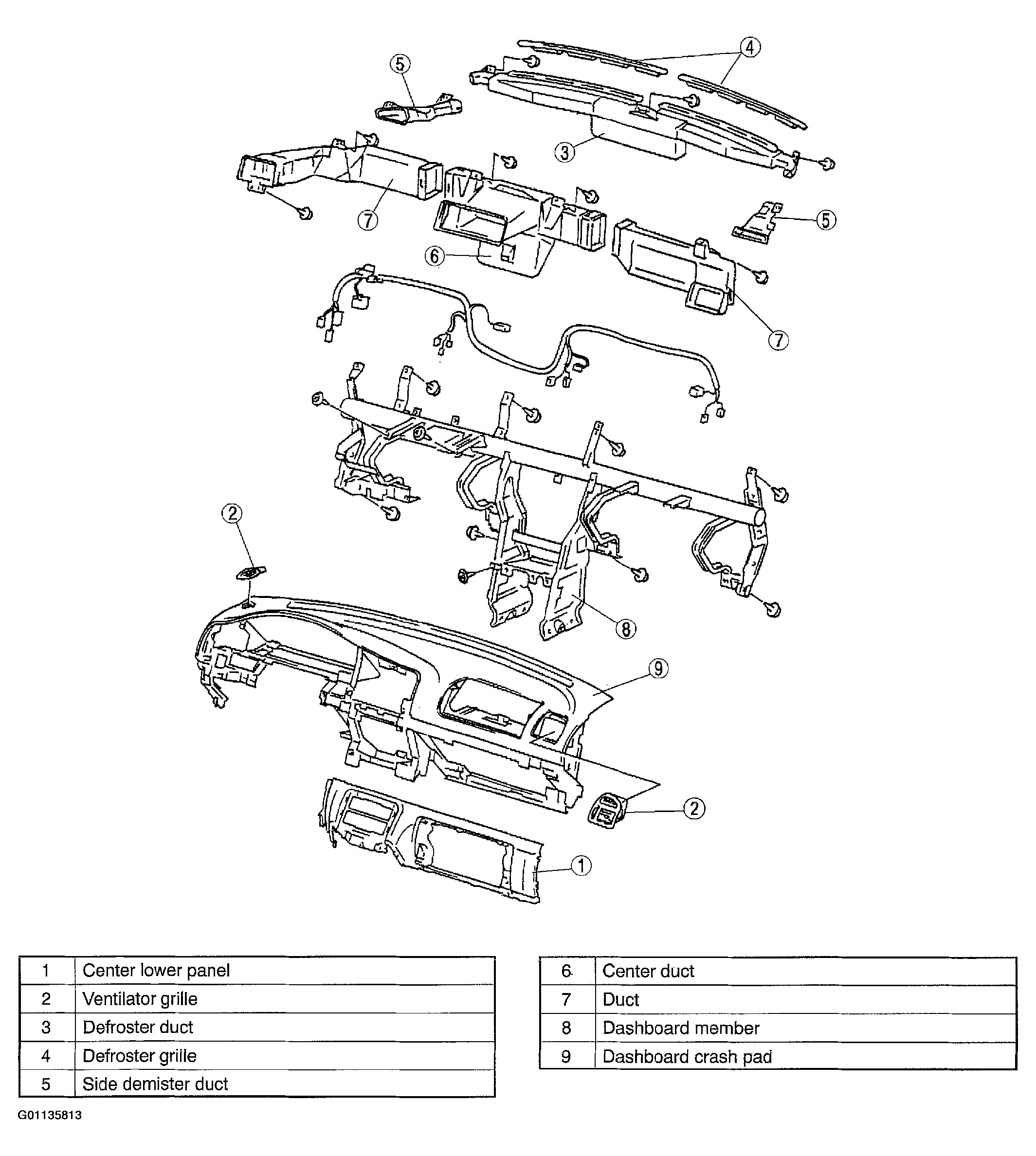

Fig 1: Disassembling/Assembling Dashboard
Courtesy of MAZDA MOTORS CORP.
