Rear Console Disassembly/Assembly
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

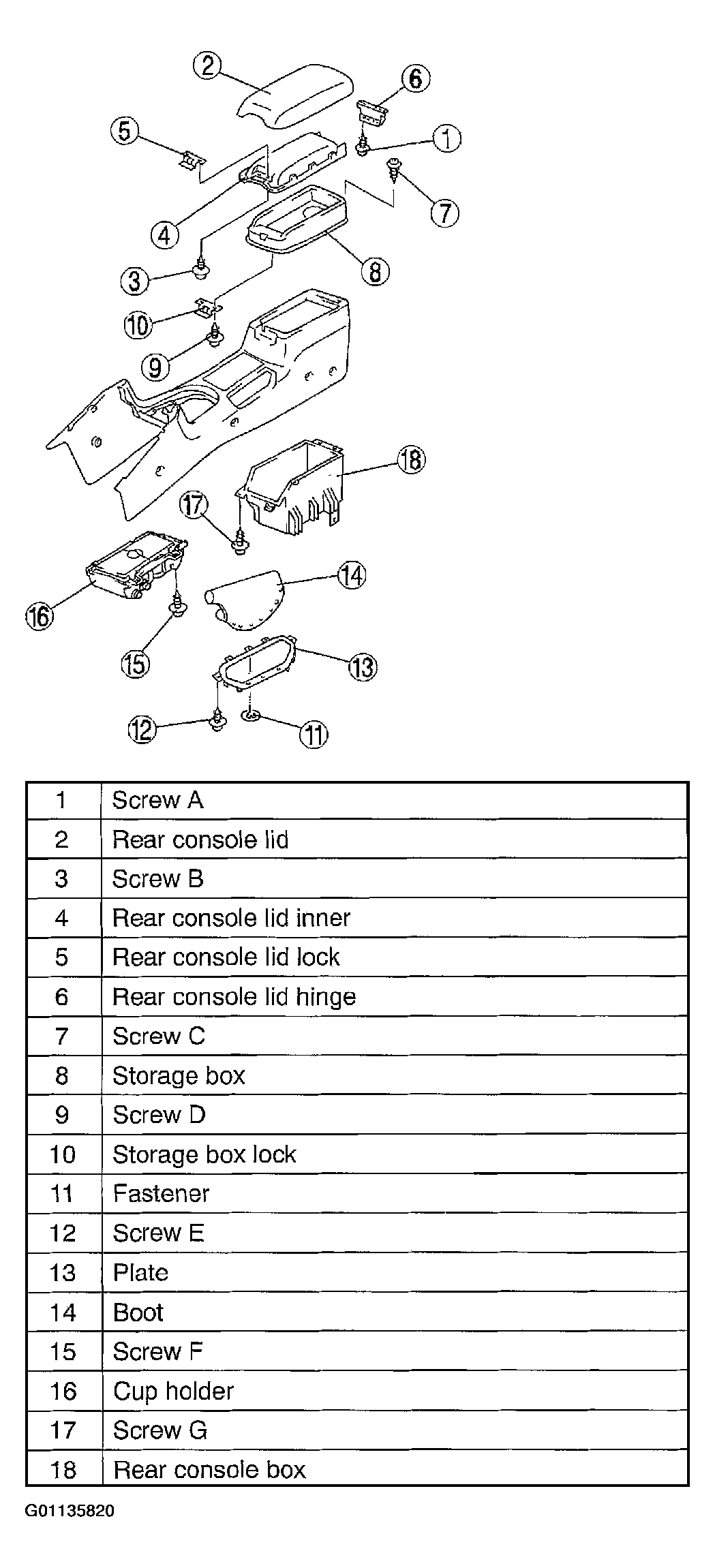

- Disassemble in the order indicated in Fig 1 .
- Assemble in the reverse order of disassembly.
