Socket Removal Note

WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Turn the socket while pushing the protrusion of the ring through the hole of the socket with a tape-wrapped flathead screwdriver.

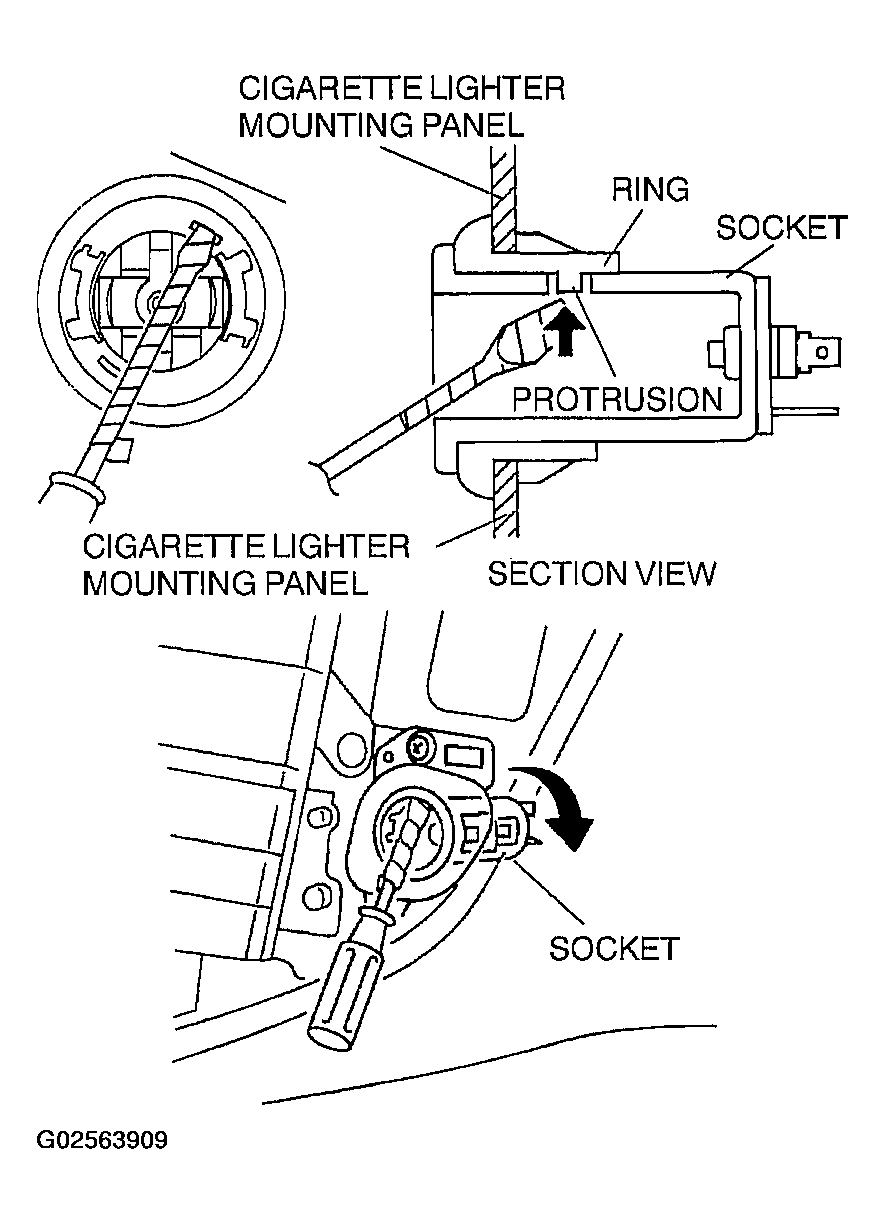

Fig 1: Turning Socket While Pushing Protrusion Of Ring Through Hole Of Socket
Courtesy of MAZDA MOTORS CORP.
Push the socket forward.
Return the socket clockwise to original angle position as shown to pull it forward.

Fig 2: Locating Socket Holes
Courtesy of MAZDA MOTORS CORP.
