Accelerator Pedal Removal/Installation: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the figure.

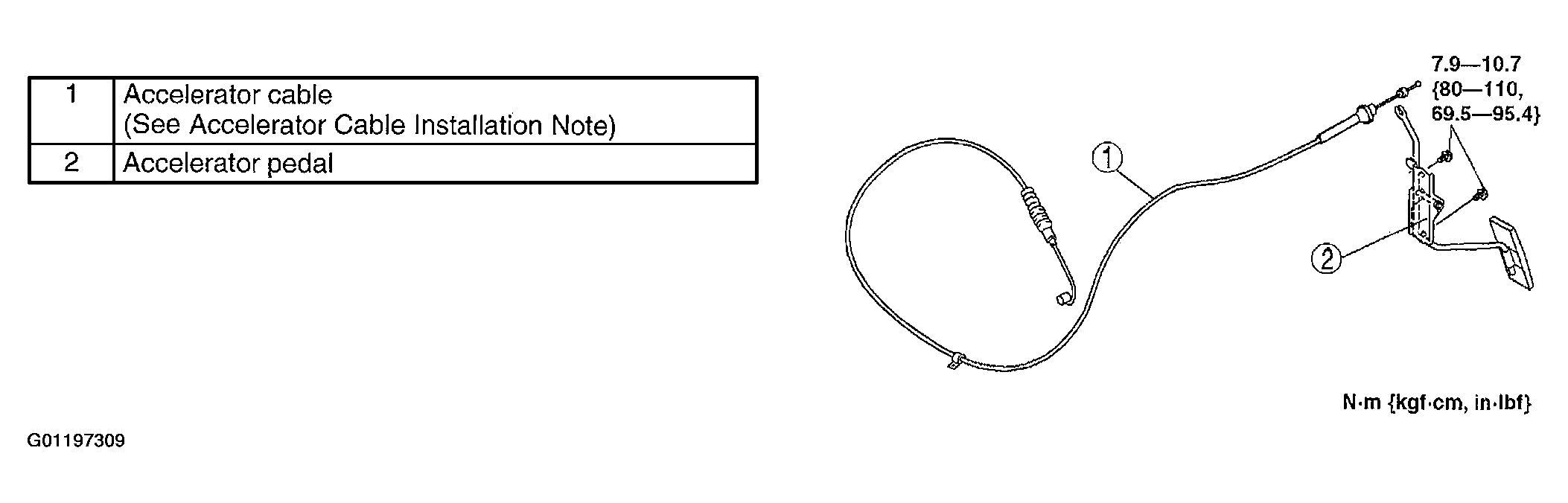

    Fig 1: Removing/Installing Accelerator Pedal & Cable
    G01197309Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
