Front Seat Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Handling the front seat (with a side air bag) improperly can accidentally deploy the side air bag, which may seriously injure you. Read AIR BAG SAFETY PRECAUTIONS before handling the front seat (with a side air bag).

Disconnect the negative battery cable and wait for more than 1 minute.
Remove the side air bag module. (See SIDE AIR BAG MODULE .)
Disassemble in the order indicated.

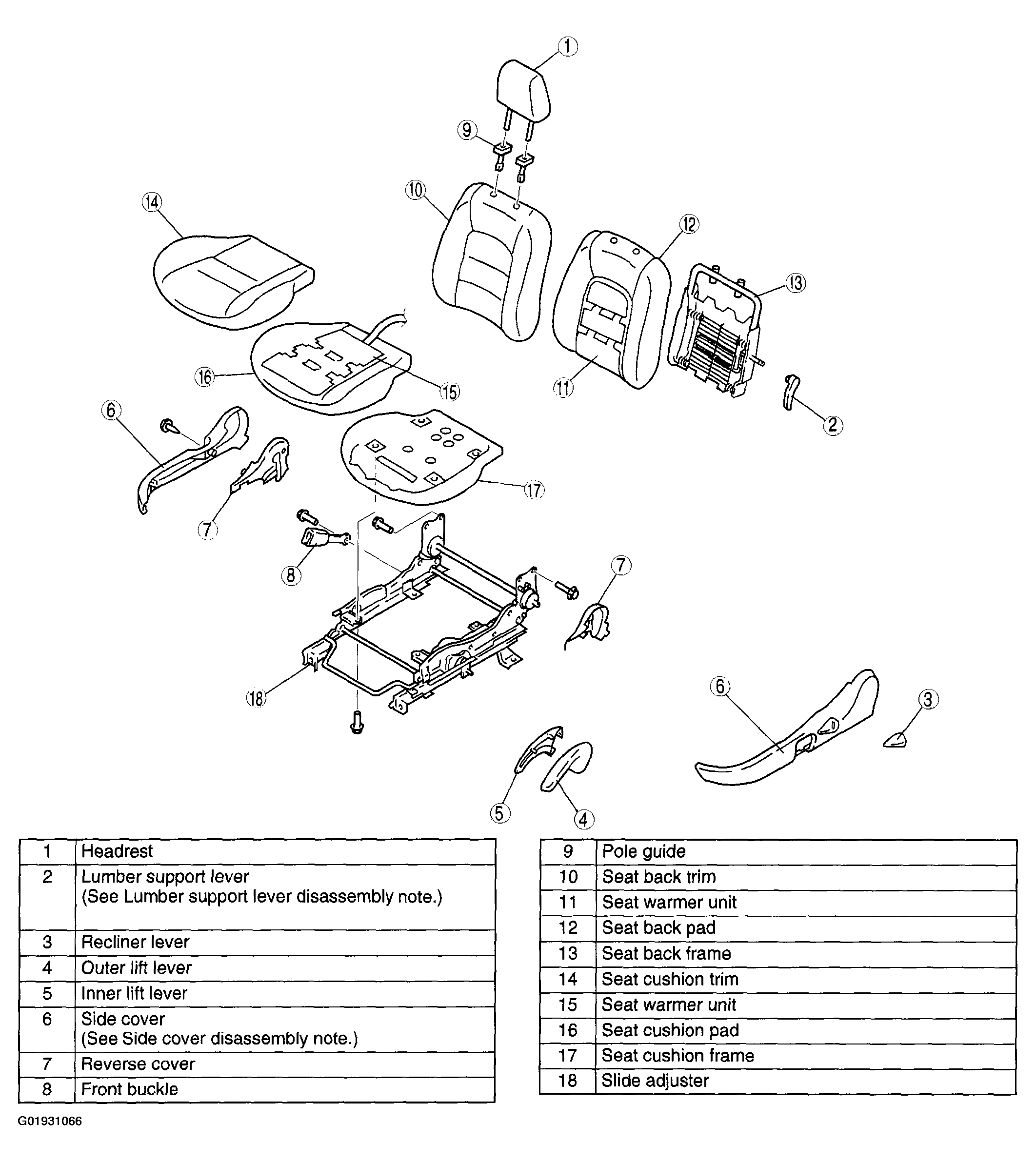

Fig 1: Exploded View Of Driver'S Seat (Normal Seat)
Courtesy of MAZDA MOTORS CORP.

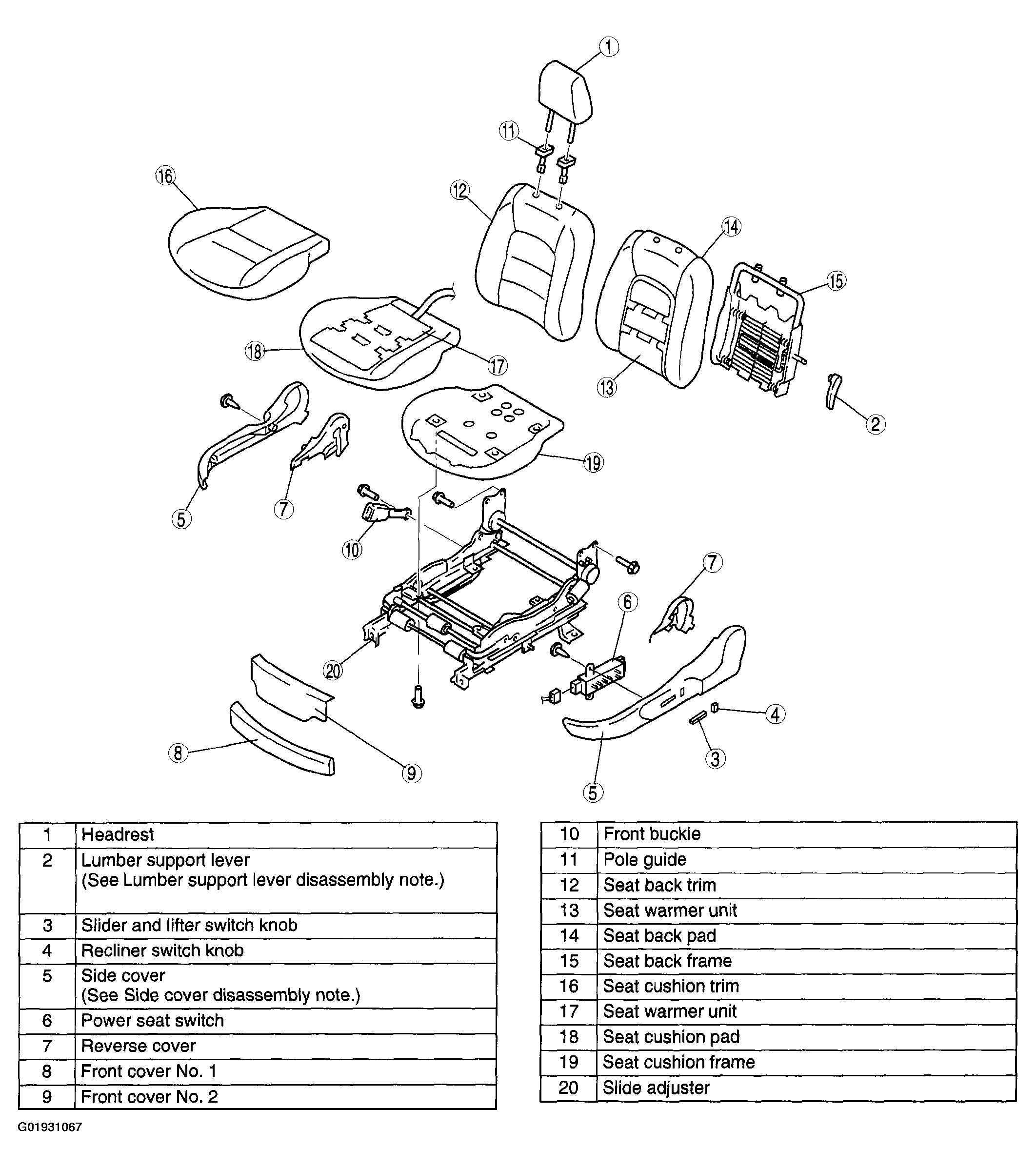

Fig 2: Exploded View Of Driver'S Seat (Power Seat)
Courtesy of MAZDA MOTORS CORP.

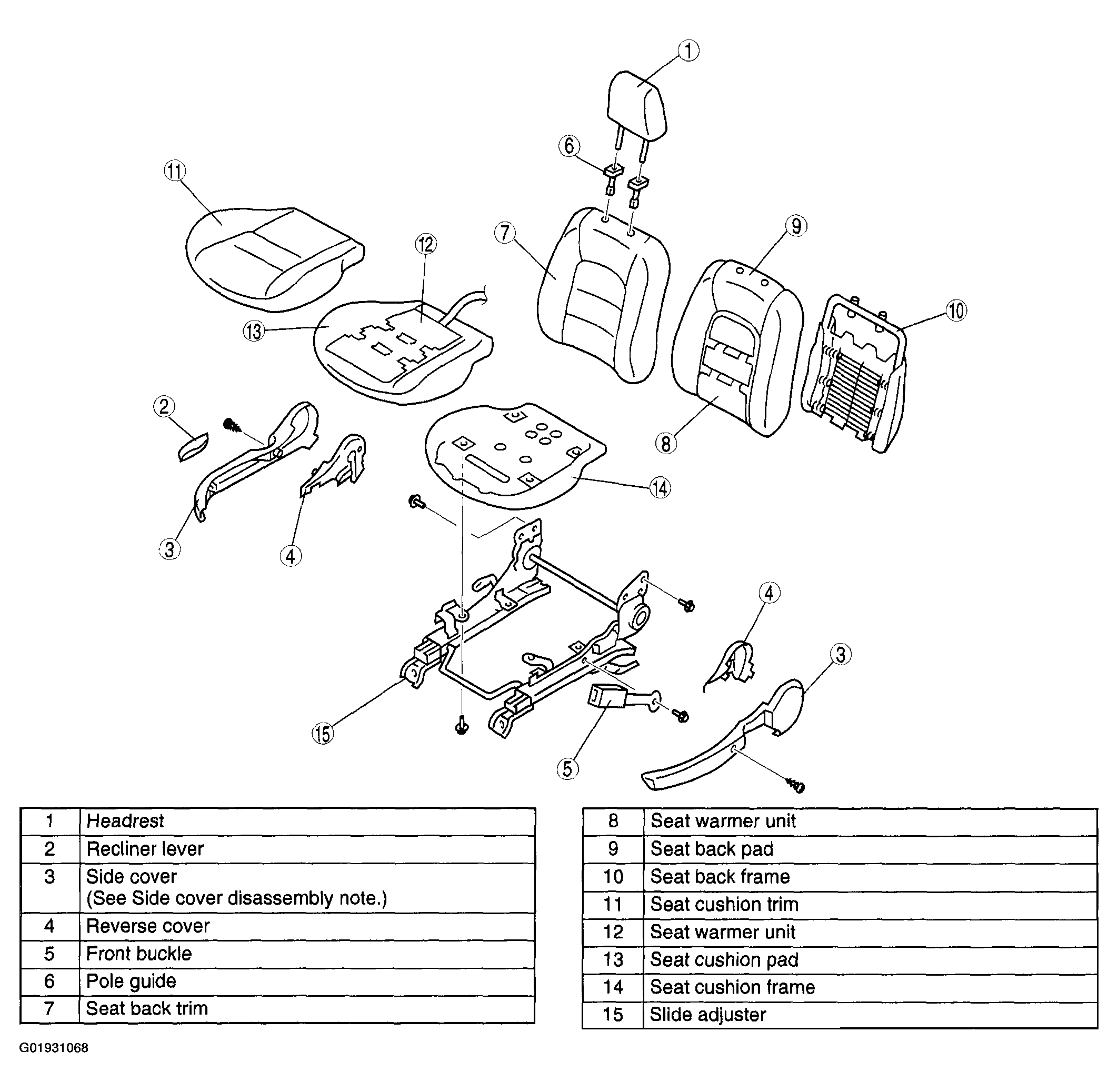

Fig 3: Exploded View Of Passenger's Seat
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
