Starter Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in Fig 1 and Fig 2.

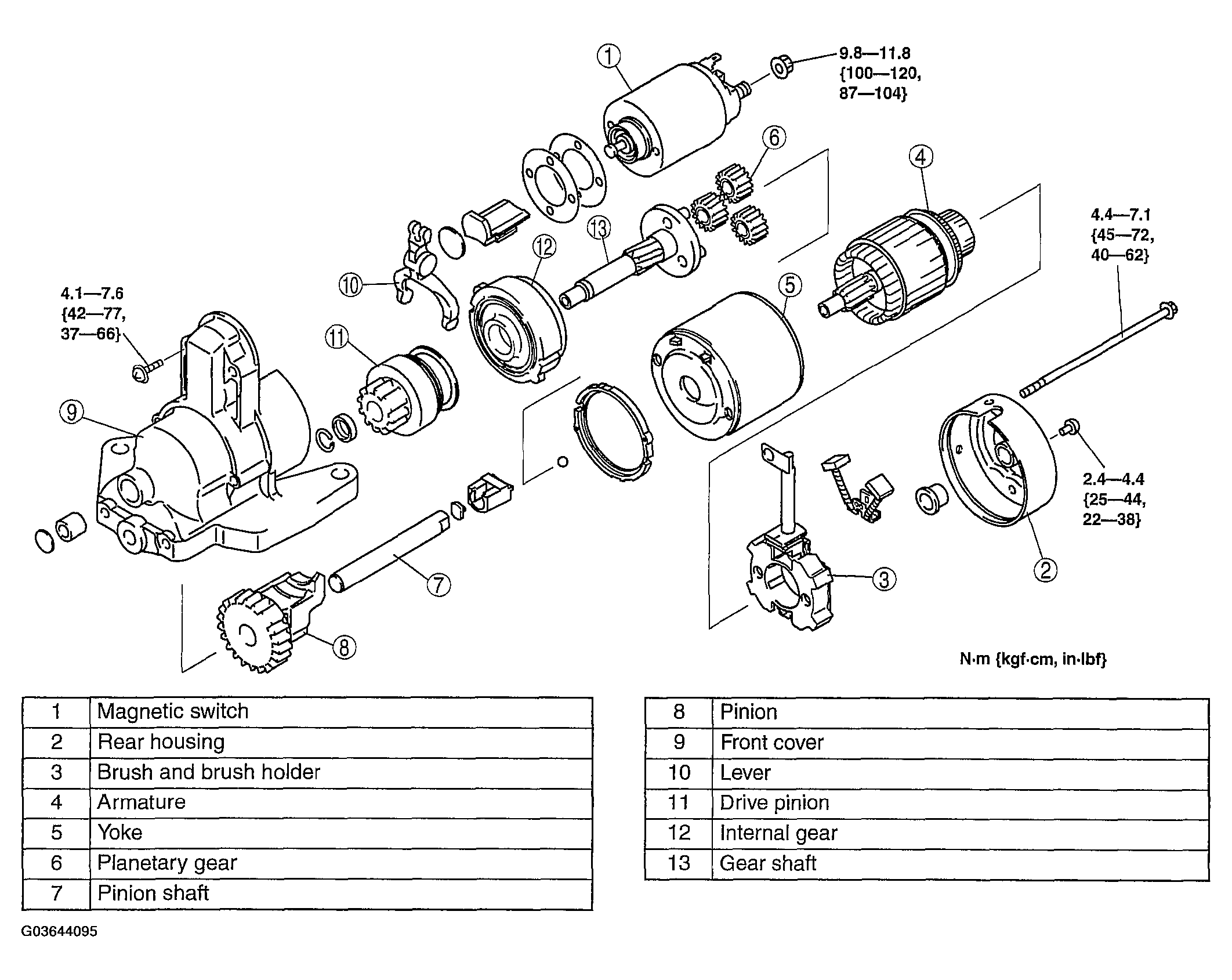

Fig 1: Exploded View Of Starter - L3 With Torque Specifications
Courtesy of MAZDA MOTORS CORP.

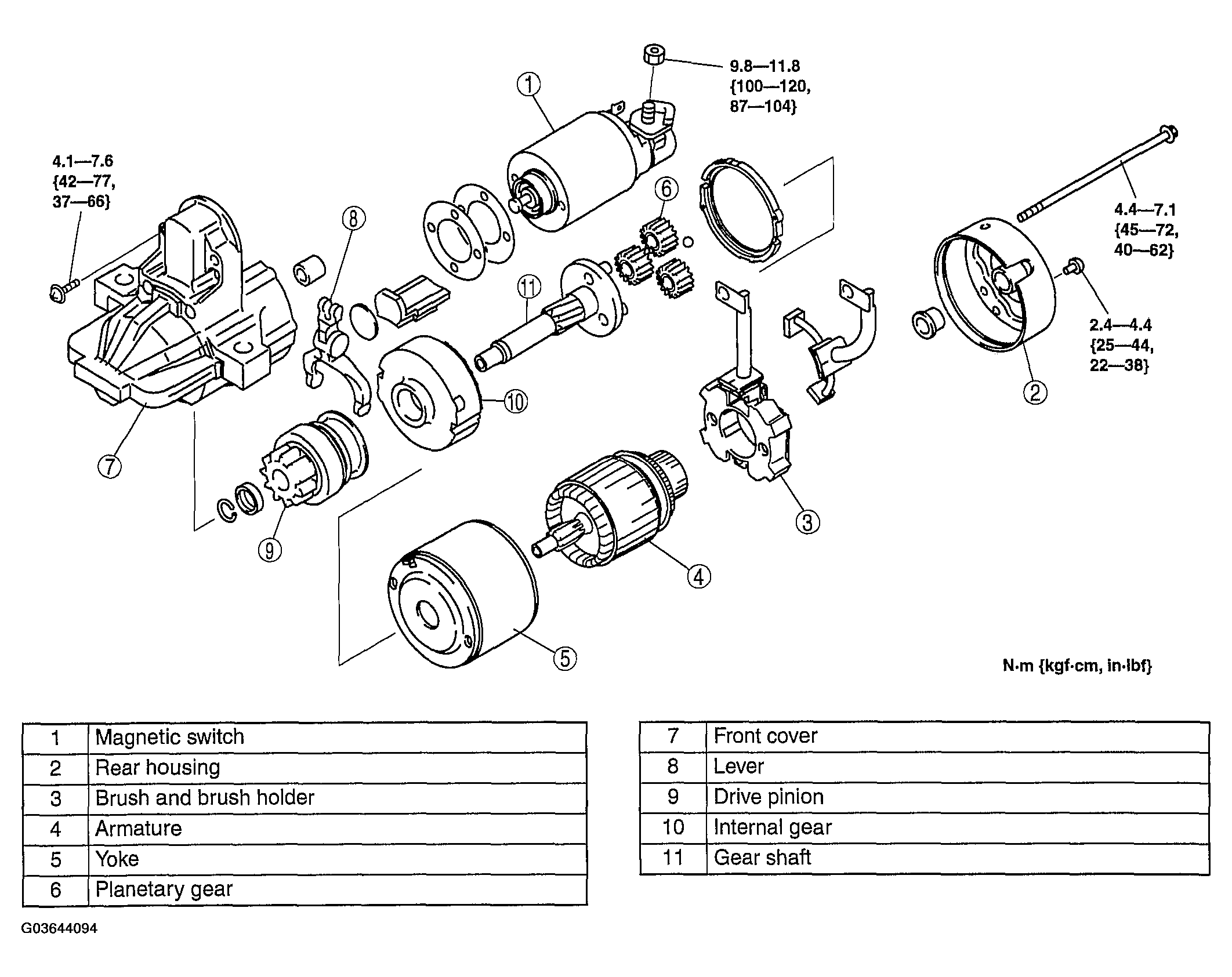

Fig 2: Exploded View Of Starter - AJ With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
