Ignition Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the continuity between the ignition switch terminals is as indicated in the table.
- If not as indicated in the table, replace the ignition switch.
Fig 1: Inspecting Ignition Switch
Courtesy of MAZDA MOTORS CORP.

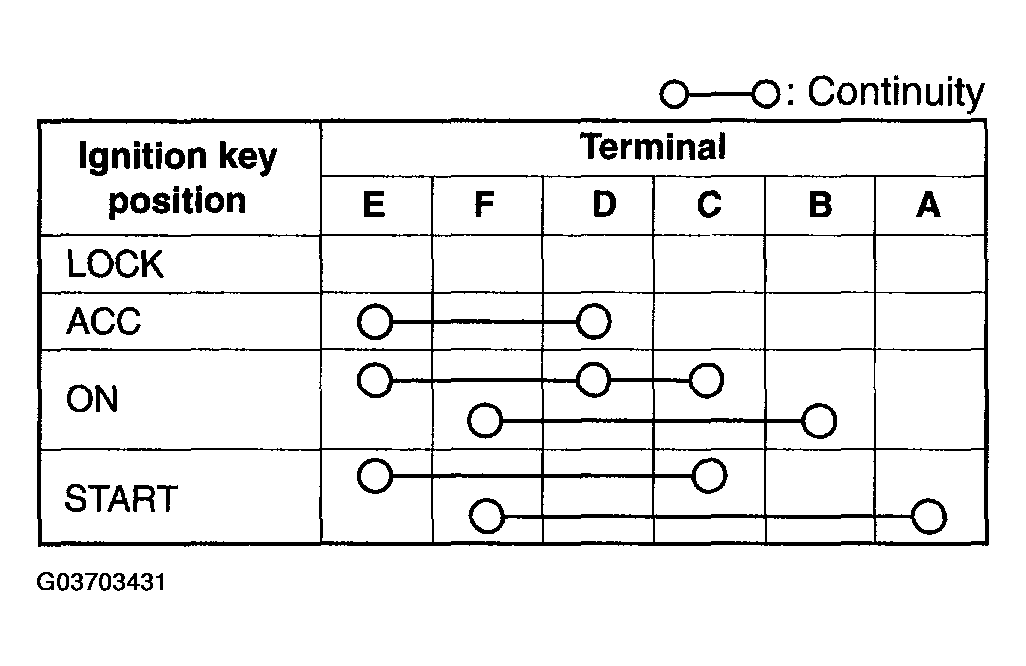

Fig 2: Ignition Switch Terminal Continuity Description Table
Courtesy of MAZDA MOTORS CORP.
