Differential Disassembly/Assembly: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.
Assemble in the reverse order of disassembly.

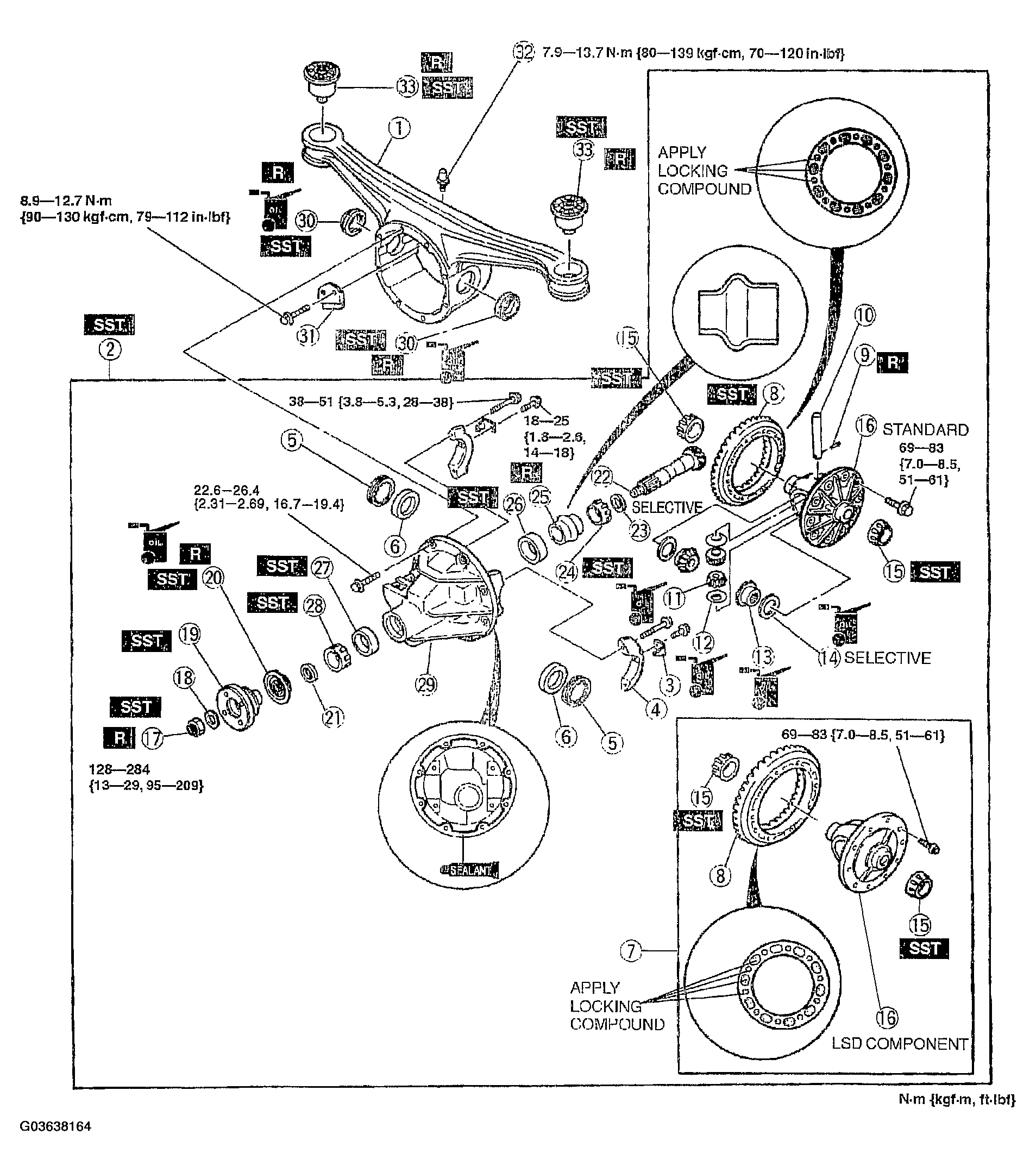

Fig 1: Differential Disassembled View & Torque Specifications
Courtesy of MAZDA MOTORS CORP.

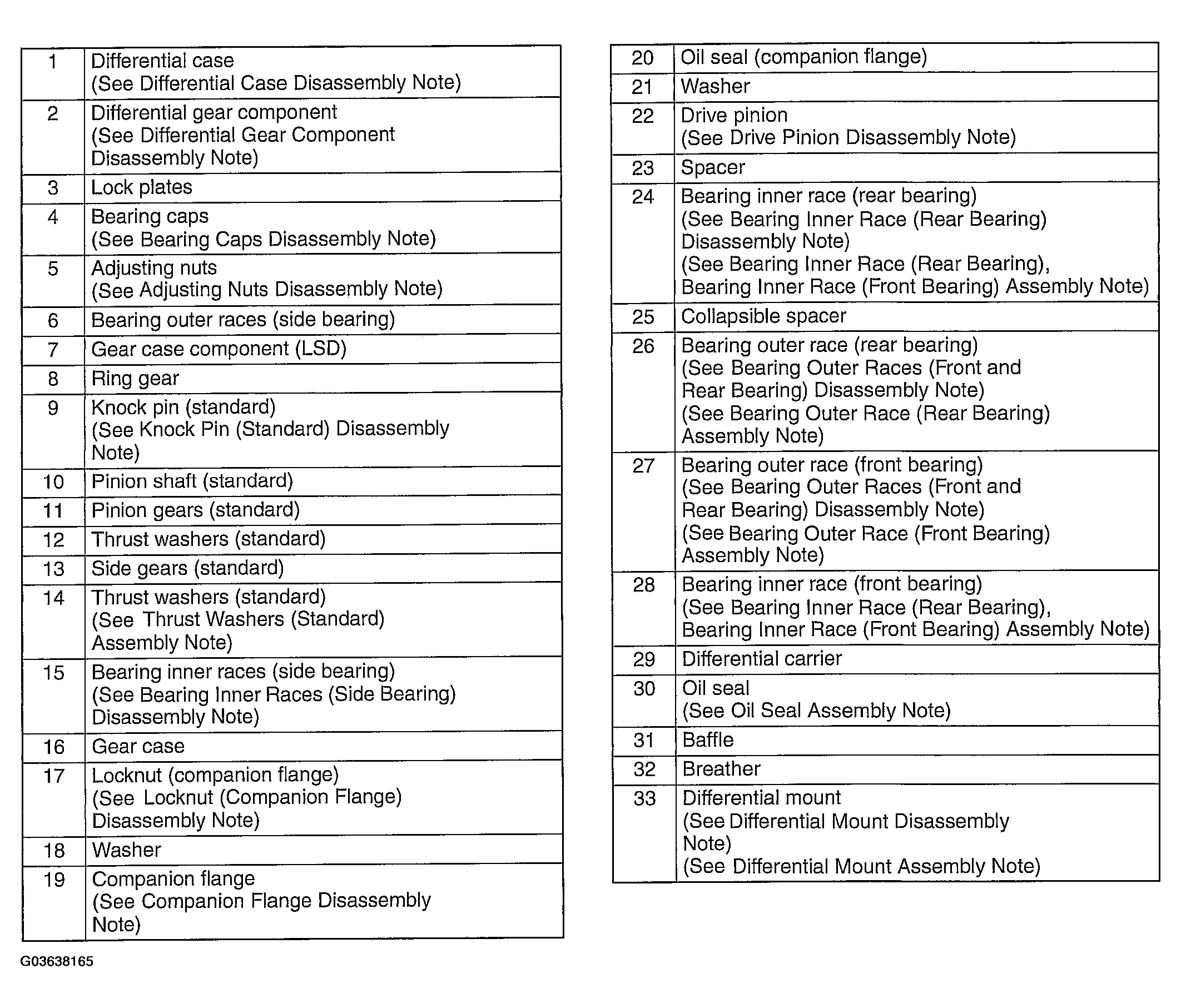

Fig 2: Differential Disassembled View Description
Courtesy of MAZDA MOTORS CORP.
