Differential Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Drain the differentia oil.
Remove the crossmember bracket. (See CROSSMEMBER BRACKET REMOVAL/INSTALLATION .)
Remove the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP] .) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [BP WITH TC] .)
Remove in the order indicated in the table.
Install in the reverse order of removal.
Add the specified oil to the specified level. (See DIFFERENTIAL OIL REPLACEMENT .)

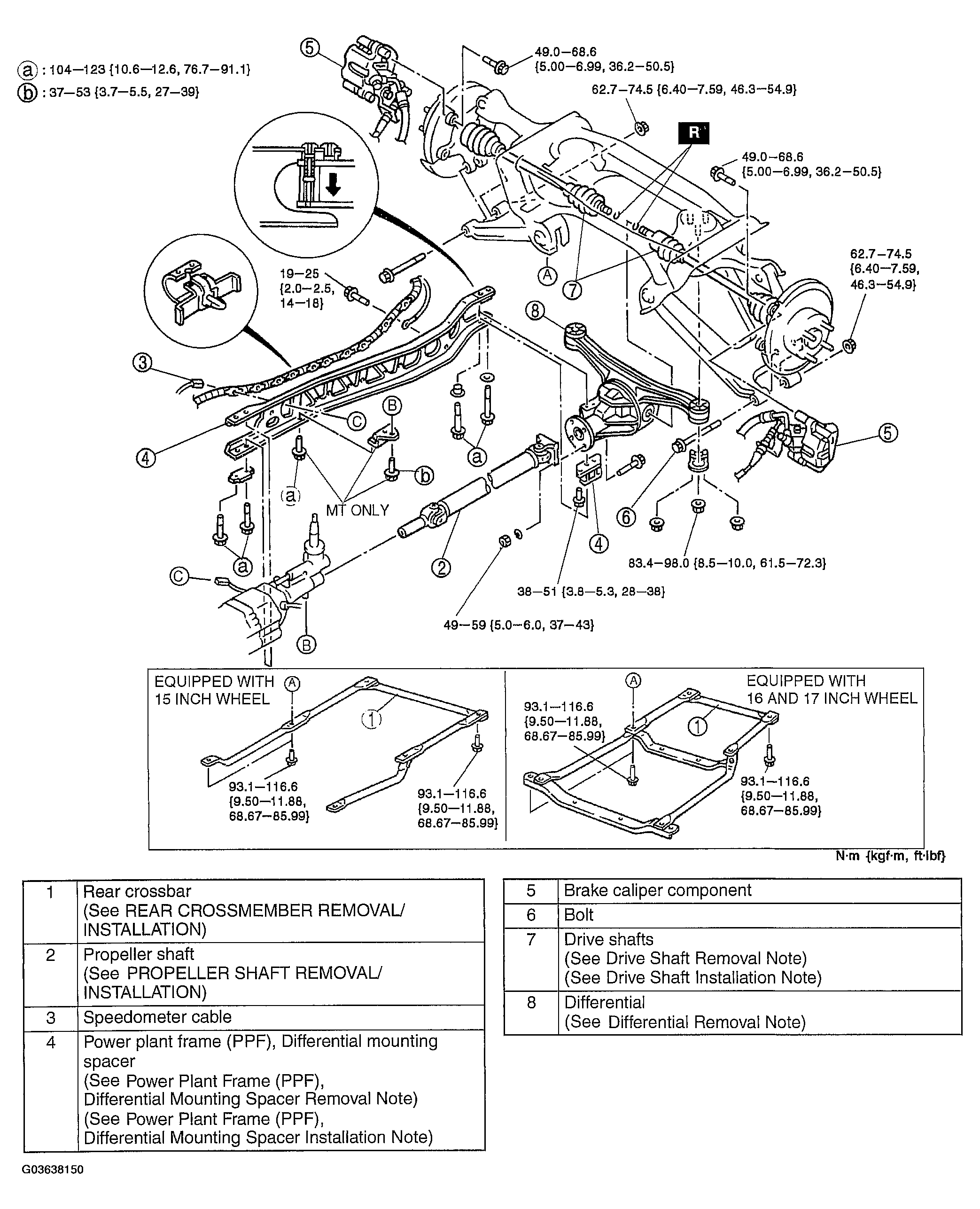

Fig 1: Exploded View Of Differential & Torque Specifications
Courtesy of MAZDA MOTORS CORP.
