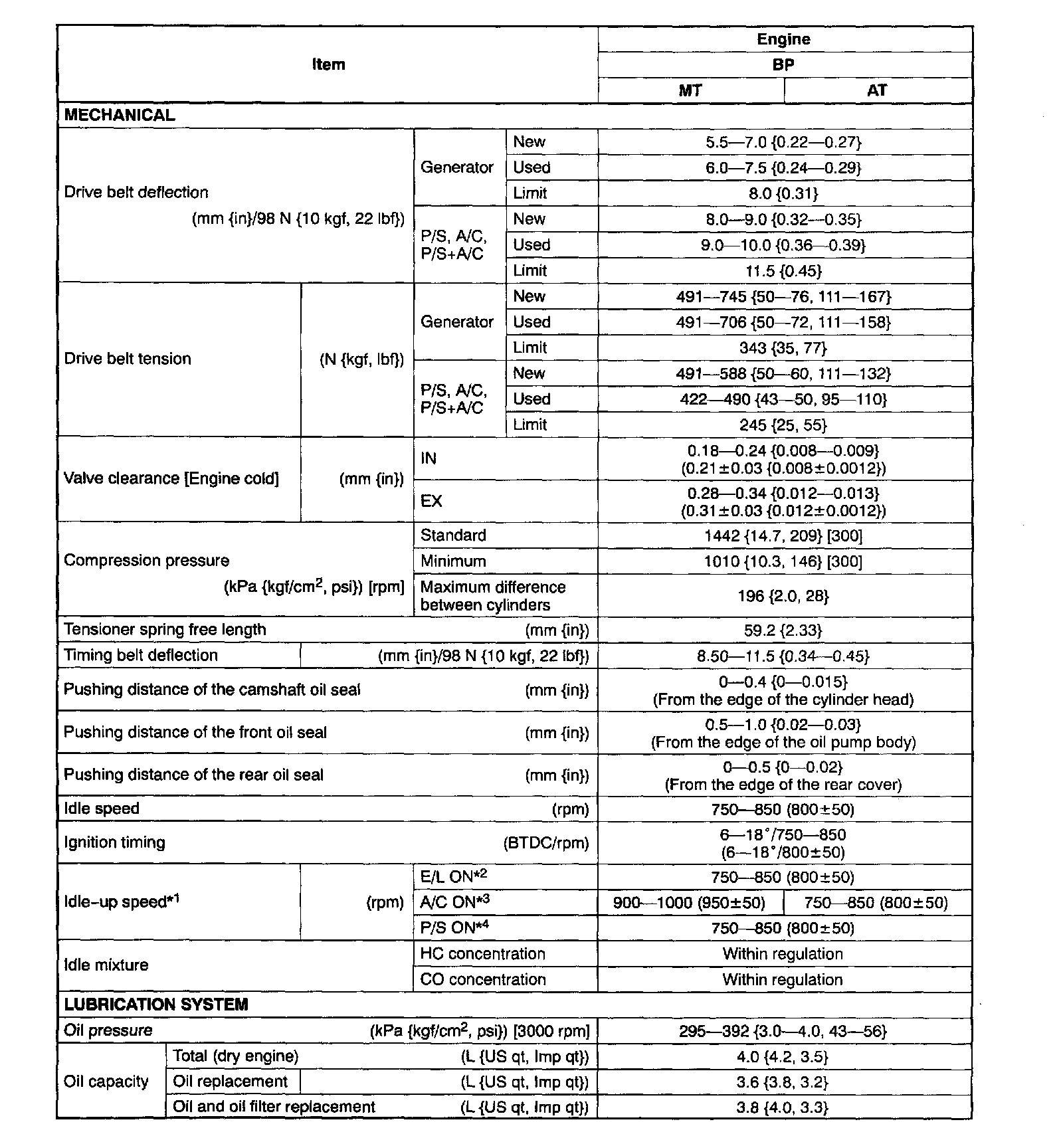

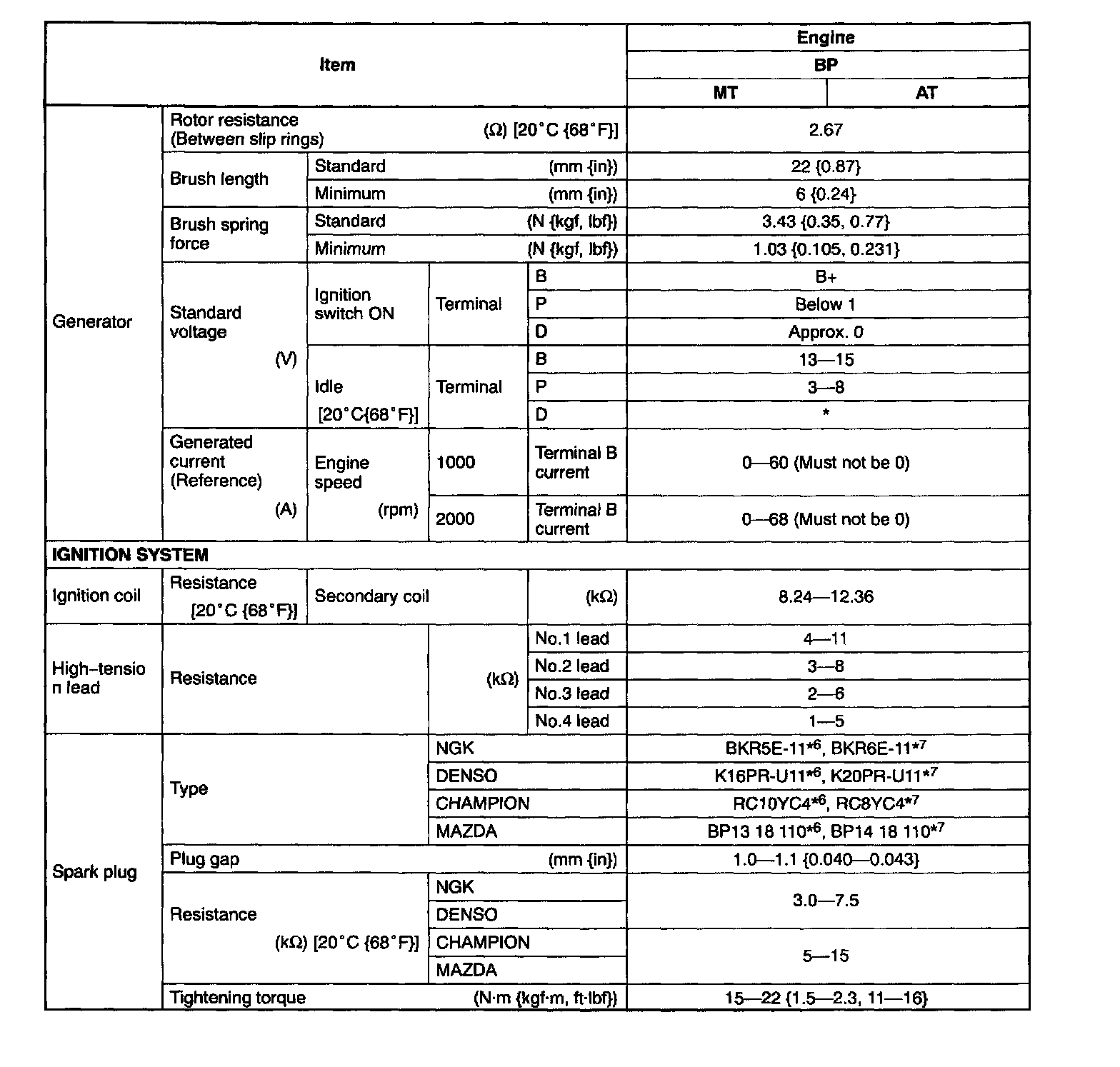

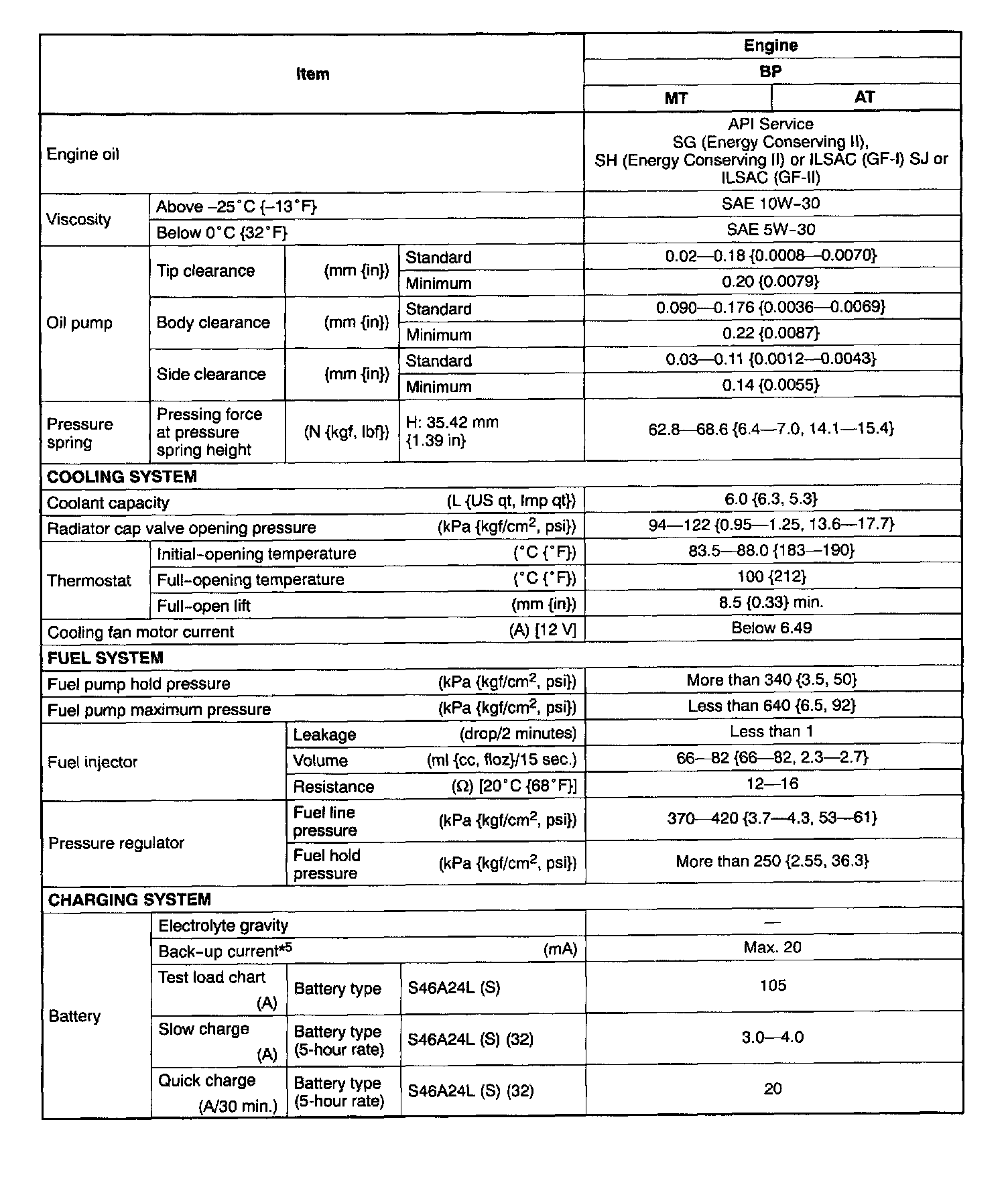

General Engine Specifications

* Turn the following electrical loads on and verify that the voltage reading increases.
- Headlights
- Blower motor
- Rear window defroster

*1 : Excludes temporary idle speed drop just after the loads (E/L, A/C, P/S) are turned on.
*2 : Headlight, fan switch (above 1st) and cooling fan are turned on.
*3 : A/C switch and fan switch are tuned on.
*4 : Steering wheel is fully turned.
*5 : Back-up current is the constant flow of current present (for the audio unit, clock, PCM, etc.) when the ignition switch is off and with the ignition key removed.
*6 : Standard plug
*7 : Cold type plug
