Central Control Module: Service and Repair

CPU REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the scuff plate.
3. Remove the front side trim.

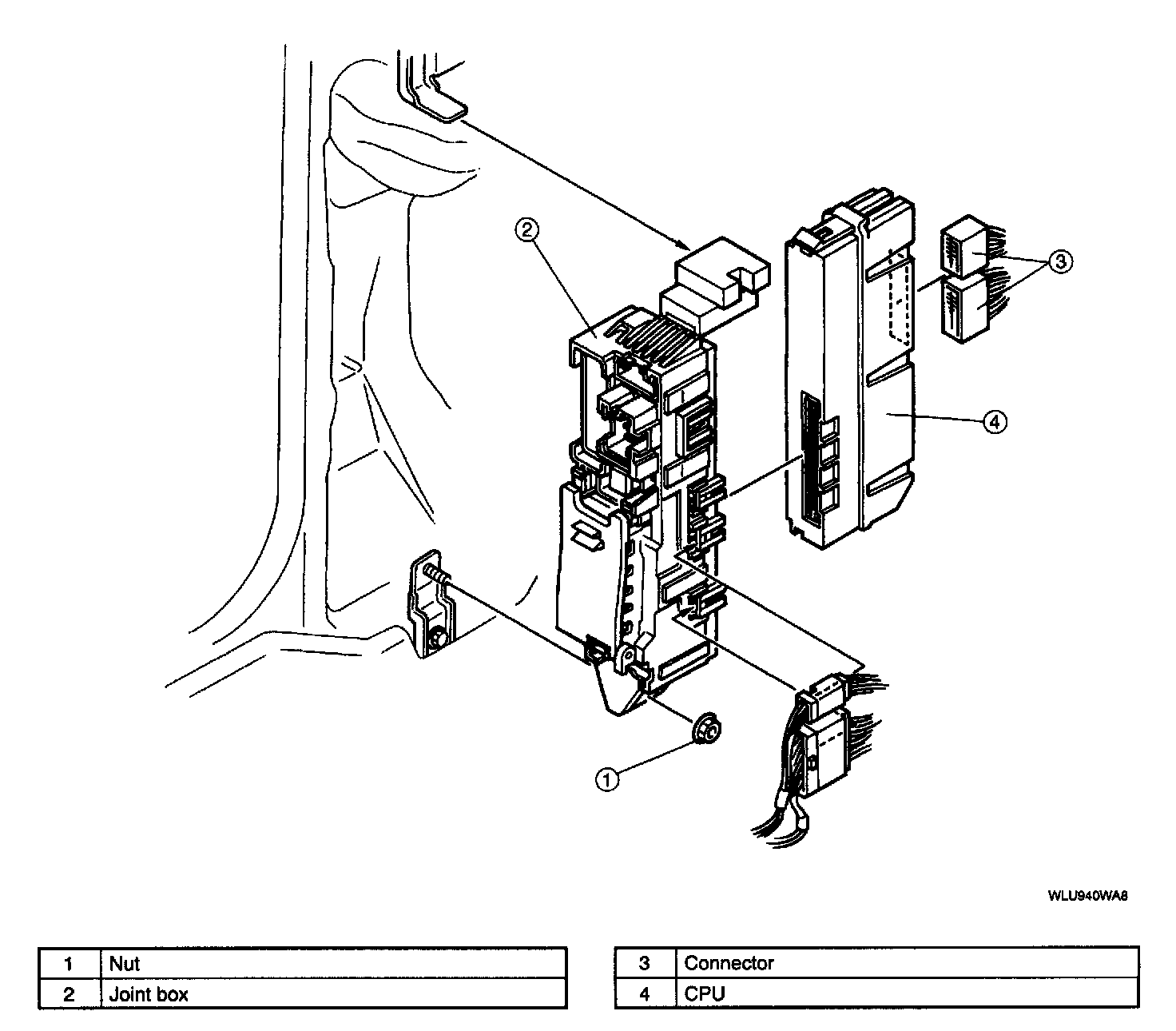

4. Remove in the order indicated in the table.
5. Install in the reverse order of removal.
